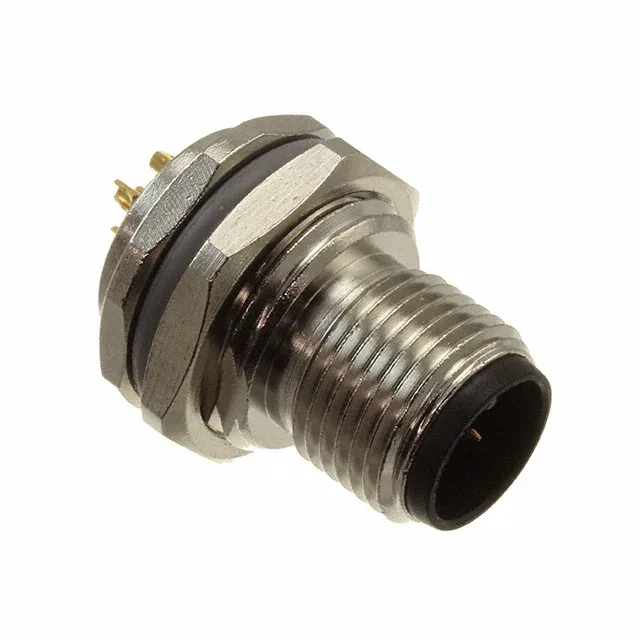

The T4130012051-000 is an M12 A-coded receptacle with male pins, designed for sealed industrial interconnect in sensor, actuator, and fieldbus applications. It carries 5 positions rated 4 A per contact at 60 V, with gold-plated mating surfaces (3.00 µ" thickness) for corrosion resistance over repeated mating cycles. The threaded coupling and IP67 rating — dust-tight and waterproof when mated — suit it for washdown, outdoor, and high-vibration environments where an unsealed connector would fail. Solder cup termination allows field wiring of the cable assembly without a special crimp tool.
What the 4 A per contact rating means for the circuit
4 A per contact at 60 V is typical for M12 signal/power hybrids. Derate above 85 °C per the manufacturer's curve.
Mating and mounting — what fits
This is a panel-mount receptacle with a bulkhead front-side nut — it installs from the front of the panel and tightens with a nut on the back side. The threaded M12 coupling mates with any standard A-coded M12 female plug (5-position female socket). The IP67 seal engages when the plug is fully tightened; the O-ring compresses against the panel face, not the thread. Solder cup termination accepts stranded wire — strip, tin, and solder into the cup. No crimp tool needed, but the joint must be strain-relieved in the cable assembly.
