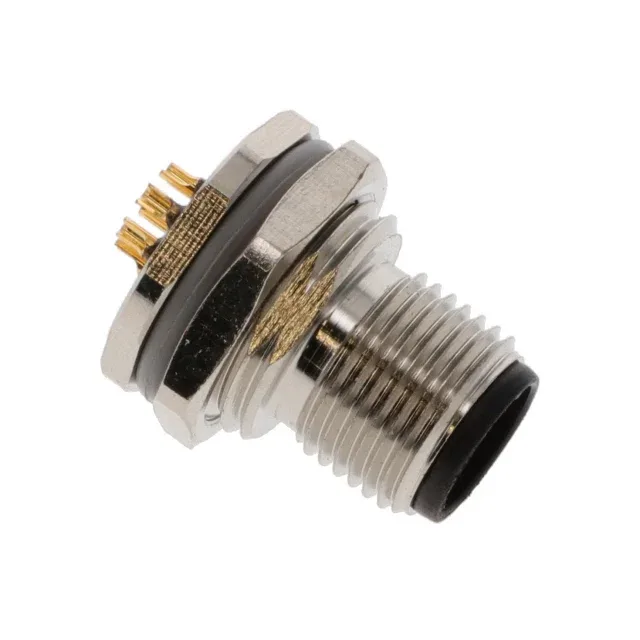

T4130012081-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4130012081-000 M12 Plug, 8-Pin, IP67, 2A

MPNT4130012081-000
Active

TE Connectivity M12 A-coded plug, 8 positions, male pins, gold-plated solder cup, IP67, 2A, 30V, panel mount, nickel shell.

$13.3000Ref. price · indicative, final on quote
T4130012081-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4130012081-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount
Connector typePlug, Male Pins
Fastening typeThreaded
Voltage rating30V
Current rating2A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
PackageBulk
ShieldingUnshielded
OrientationA
TerminationSolder Cup
ApplicationsIndustrial
Shell finishNickel
Positions8
Shell size - insertM12-8
Contact finish - matingGold

Product details

M12 A-Coded Plug, 8-Position, IP67 — TE T4130012081-000

The TE Connectivity T4130012081-000 is an M12 A-coded circular plug with 8 male pins, gold-plated contacts, and a nickel-plated copper alloy shell. It terminates via solder cup and mounts to a panel using a bulkhead front-side nut. Rated IP67 when mated, it seals against dust and temporary water immersion — suited for industrial sensor networks, automation cabinets, and outdoor equipment where washdown or condensation is a concern.

Termination is solder cup, meaning each wire is soldered directly into the pin cup rather than crimped. The unshielded design means no grounding ferrule or cable shield termination is provided; for shielded cable assemblies, pair this plug with a shielded M12 receptacle and a separate cable gland.

Frequently asked questions

What is the pinout of T4130012081-000?

The T4130012081-000 is an 8-position M12 A-coded plug with male pins. The pinout follows the M12 A-coding standard for 8 contacts — the specific signal assignment depends on your application wiring. The gold-plated solder cup termination allows you to wire each pin per your harness diagram.

Is T4130012081-000 compatible with standard M12 receptacles?

Yes, it mates with any standard M12 A-coded receptacle of the same 8-position shell size. The A-coding key prevents mating with B-, D-, or X-coded M12 connectors.
