IP67-Sealed M12 Receptacle for Industrial Sensor and Actuator Networks

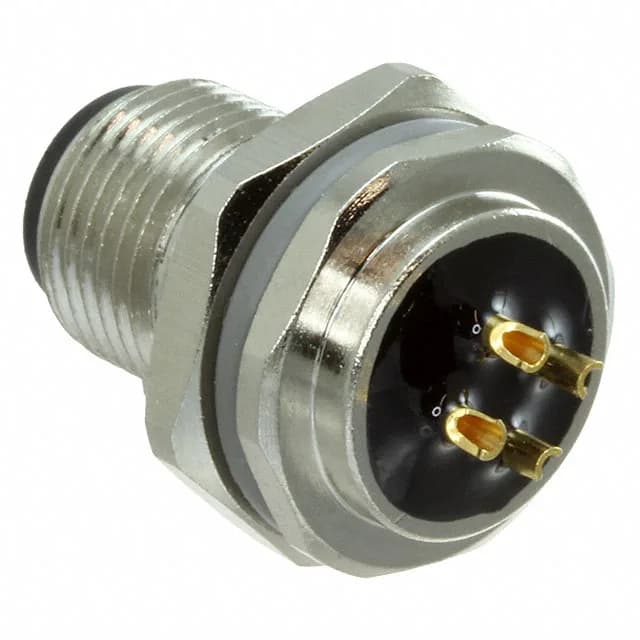

The T4130512041-000 is an M12 D-coded receptacle with male pins, designed for sealed industrial interconnect where dust and water ingress are a concern. The 4-position, M12-4 shell size mates with standard M12 D-coded cordset connectors, carrying up to 4 A per contact at 250 V.
Wiring and Termination: Solder Cup for Field-Assembled Cables
Termination is solder cup — the installer strips the cable, tins the conductor, and solders into the cup on the back of each pin. No crimp tooling required, which keeps field repair and short-run assembly straightforward. The bulkhead mounting feature with front-side nut secures the receptacle through a panel cutout; the nickel-plated copper alloy shell provides the ground path and corrosion resistance for the enclosure interface.
Temperature Range and Material Ratings
ROHS3 compliance is confirmed on the listing.
