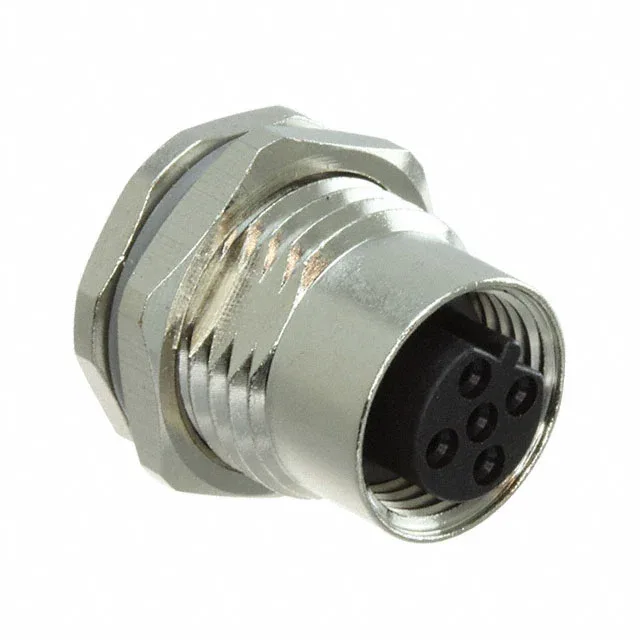

T4131412051-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE T4131412051-000 M12 B-Code Plug, 5 Position, 4A, IP67

MPNT4131412051-000
Active

TE Connectivity M12 B-coded plug, 5-position female sockets, solder cup termination, 4A, 250V, IP67, nickel shell, gold-plated contacts, panel mount with bulkhead nut.

$8.2300Ref. price · indicative, final on quote
T4131412051-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4131412051-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-30°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationB
TerminationSolder Cup
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 B-Coded Plug for Panel-Mount Sensor Networks

The TE T4131412051-000 is a 5-position M12 B-coded plug with female sockets, terminated via solder cup and designed for panel mounting with a bulkhead front-side nut. The B orientation keying prevents accidental mating with A-coded (sensor/actuator) or D-coded (Ethernet) M12 connectors — it is the standard interface for fieldbus and DeviceNet trunk lines where the pin assignment follows the B-code layout. The nickel-plated copper alloy shell and polyamide insert carry an IP67 rating when mated, sealing against dust ingress and temporary water immersion up to 1 metre for 30 minutes.

Mounting and Sealing

The threaded fastening type locks the mated pair positively; in a vibration environment the thread engagement keeps the connection tight without a secondary locking clip. The unshielded shell means this plug does not carry a cable braid termination — for shielded cable runs, the mating receptacle should handle the shield bond.

Listed as Active on the TE product lifecycle — this is a current-production part, not a last-time-buy or NRND line.

Frequently asked questions

What is the mating connector for T4131412051-000?

This B-coded plug mates with a B-coded M12 receptacle (female pins to male sockets). The orientation keying is non-negotiable — an A-coded or D-coded receptacle will not mate. The mating half is typically a panel-mount or cordset receptacle with the same 5-position M12-5 shell configuration.

What is the current rating of T4131412051-000?

Rated 4 A per contact at 250 V. The M12-5 shell insert limits the current per circuit below what the gold-plated contact beam could carry alone — derate above 85°C per the manufacturer's derating curve.

Where can I buy T4131412051-000?

This part is sourced per RFQ against your BOM quantity.
