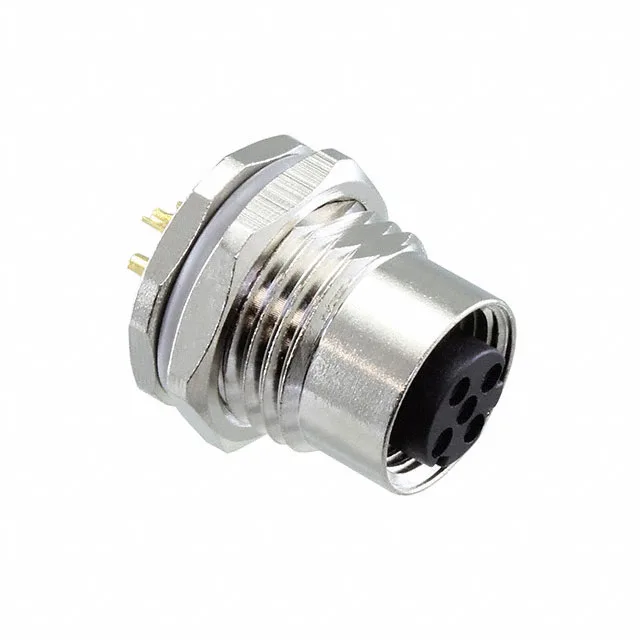

T4131512041-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

T4131512041-000 M12 D-Coded Plug, 4-Pos, IP67, 4A

MPNT4131512041-000
Active

T4131512041-000, M12 D-coded plug, 4-position female sockets, solder cup, panel mount, IP67, 4A, 250V, gold-plated contacts, nickel shell.

$7.2400Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4131512041-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationD
TerminationSolder Cup
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 D-Coded Plug for Profinet and Industrial Ethernet

The T4131512041-000 is a M12 D-coded circular plug with 4 female socket contacts, designed for industrial Ethernet protocols like Profinet and EtherNet/IP. The D-coding keying prevents accidental mating with A- or B-coded M12 connectors, ensuring correct wiring in mixed-cable environments. Rated 4A per contact at 250V, it carries both power and data on the same connector body. The IP67 rating (dust-tight, protected against temporary immersion) suits it for washdown zones, outdoor cabinets, and factory-floor junction boxes where moisture or dust is present.

Termination and Mounting — Solder Cup, Panel Mount

Termination is solder cup — each wire is hand-soldered into the cup on the back of the contact. No crimp tool required, which simplifies field termination but adds per-joint assembly time. The connector mounts to a panel via a bulkhead front-side nut, so the plug body installs from outside the enclosure and the nut tightens against the panel interior. The copper alloy shell with nickel finish provides corrosion resistance and a consistent ground path through the coupling threads.

Mating-side contacts are gold-plated to 3.00µin (0.076µm). For higher cycle counts, a thicker gold layer (15µin or more) would be specified; this part carries the standard flash for its class.

Frequently asked questions

Where can I buy T4131512041-000?

T4131512041-000 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time. No stock-holding claim is made here.

What is the mating connector for T4131512041-000?

This is a plug with female sockets, so it mates with a M12 D-coded receptacle that has male pins. The mating half must be D-coded (not A or B) and have the same 4-position arrangement. The threaded coupling nut provides vibration-resistant mating.

Can T4131512041-000 be used for industrial applications?

Yes, it is explicitly listed for industrial applications. The IP67 rating, wide -40°C to 85°C temperature range, and UL94 V-0 housing make it suitable for factory-floor, outdoor, and washdown environments.

Is T4131512041-000 shielded or unshielded?

Unshielded. The connector body itself does not provide EMI/RFI shielding. If the application requires shielding, the cable and system ground path must provide it; a shielded M12 connector variant would be needed.
