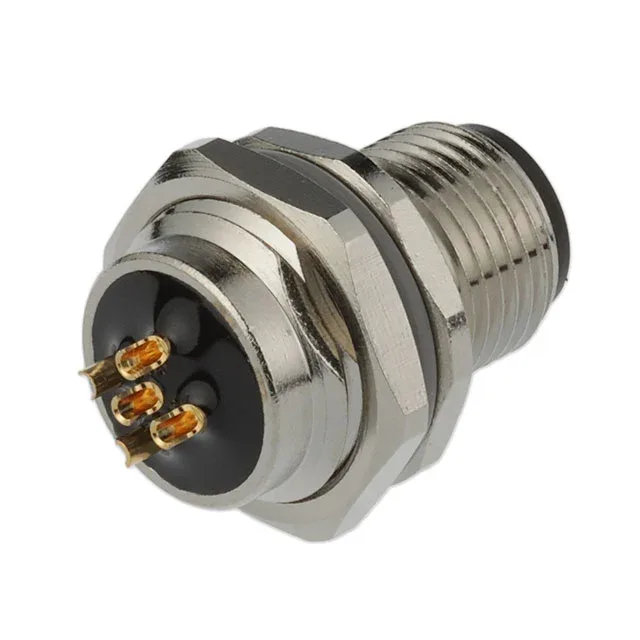

T4132012051-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE M12 T4132012051-000 Receptacle, 5-Pos Male, 4A, IP67

MPNT4132012051-000
Active

TE Connectivity M12 A-coded receptacle, 5-position male pins, gold-plated solder cup, 4A at 60V, IP67, panel mount bulkhead, -40°C to 85°C, UL94 V-0.

$7.8400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4132012051-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating60V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Rear Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationA
TerminationSolder Cup
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 A-Coded Panel Receptacle, 5-Position Male, IP67 Sealed

Termination is via solder cup, making it a field-wireable option for custom cable lengths.

IP67 Sealing and A-Coding

Rated IP67 when mated with the corresponding female cordset, this receptacle seals against dust ingress and temporary immersion in water. The A-coding orientation ensures it mates only with A-coded M12 connectors — a standard keying for sensor and actuator networks in factory automation, process control, and outdoor equipment. The threaded fastening type (M12-5 shell size) provides a vibration-resistant coupling. Hand-tight should seal it; a half-turn loose is a dropout in a washdown line.

RoHS3 compliant per current directive. The gold plating thickness on the mating contact is 3.00 µin (0.076 µm) — adequate for moderate mating cycle duty in controlled environments.

Frequently asked questions

Is T4132012051-000 compatible with standard M12 cabling?

Yes — the A-coded orientation mates with any standard A-coded M12 female cordset or receptacle. The 5-position layout follows the M12-5 pinout convention used across TE, Molex, and other M12 families.
