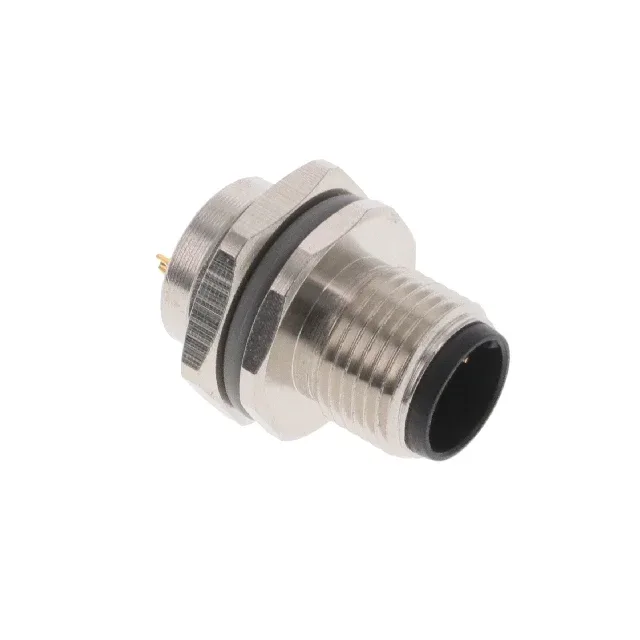

M12 Receptacle, 2-Position Male, IP67, Solder Cup
The T4132512021-000 is a 2-position M12 receptacle with male pins, rated 4A per contact at 250V. The threaded coupling and panel-mount bulkhead with rear-side nut make it a standard industrial circular interconnect for sealed harness applications. The D-coded orientation prevents cross-mating with other M12 keying variants.
The nickel-plated copper alloy shell and polyamide (PA66) insert with UL94 V-0 flammability rating suit this connector for industrial control cabinets, sensor/actuator networks, and outdoor equipment enclosures where washdown or moisture exposure is expected.
Solder cup termination — the installer strips and tins the wire, then solders into the cup. The D-coded orientation ensures it mates only with a D-coded female cordset or panel-mount counterpart, preventing mis-mating with A-, B-, or L-coded M12 connectors. The threaded coupling provides vibration-resistant retention once torqued.
