TE Connectivity AMP Connectors T4140012081-000

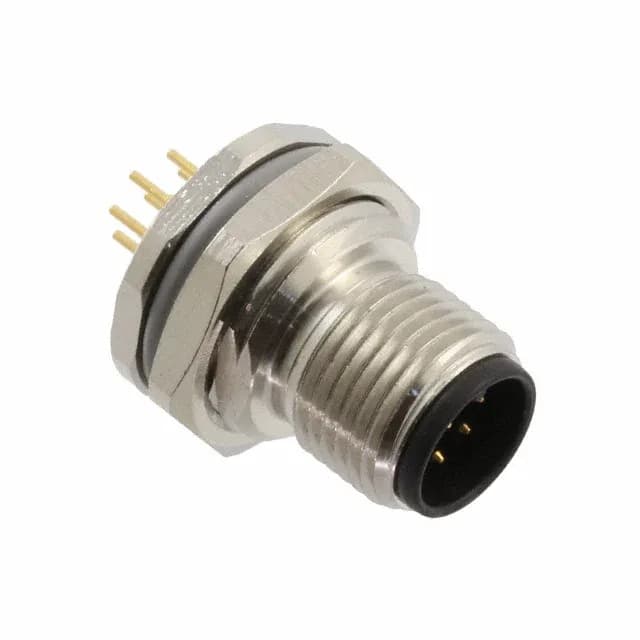

TE Connectivity M12 T4140012081-000, 8-Pos Male Plug, IP67

MPN T4140012081-000
Active

TE Connectivity M12 A-coded plug, male pins, 8 positions, gold mating contacts, IP67 sealed, solder termination, panel mount with bulkhead nut.

$13.3000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

T4140012081-000 key specifications
ParameterValue
SeriesM12
MountingPanel Mount, Through Hole
Connector typePlug, Male Pins
Fastening typeThreaded
Voltage rating30V
Current rating2A
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6

All specifications

T4140012081-000 additional specifications
ParameterValue
Contact materialCopper Alloy
Primary materialMetal
PackageBulk
ShieldingUnshielded
OrientationA
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions8
Shell size - insertM12-8
Contact finish - matingGold

Product details

M12 A-Coded Male Plug, 8 Positions — Sealed for Industrial Environments

The TE Connectivity T4140012081-000 is an M12 A-coded circular connector configured as an 8-position male plug with gold-plated pins. The threaded coupling ring secures the mated pair, and the IP67 ingress protection rating means the interface stays dust-tight and waterproof when fully mated — suited for sensor, actuator, and fieldbus connections in factory automation, process control, and outdoor equipment where washdown or condensation is routine.

Mounting and Termination — Panel Feed-Through with Solder Cups

The connector body passes through a panel cutout and is secured by the nut, leaving the solder-cup termination accessible from the rear for field wiring or harness assembly. Termination is by solder cup — each of the 8 pins has a cup that accepts a stripped wire end. This is a field-serviceable termination; no crimp tooling is required, but the joint quality depends on the solder technique and the wire gauge used. The M12-8 shell size is standard for 8-position M12 connectors, so the panel cutout and mating receptacle follow the same dimensional envelope. The A-coding orientation means the keying is standard for sensor/actuator networks (DeviceNet, IO-Link, Profibus). An A-coded plug will only mate with an A-coded receptacle — the keying pin position prevents cross-mating with B-, D-, or X-coded M12 connectors.
