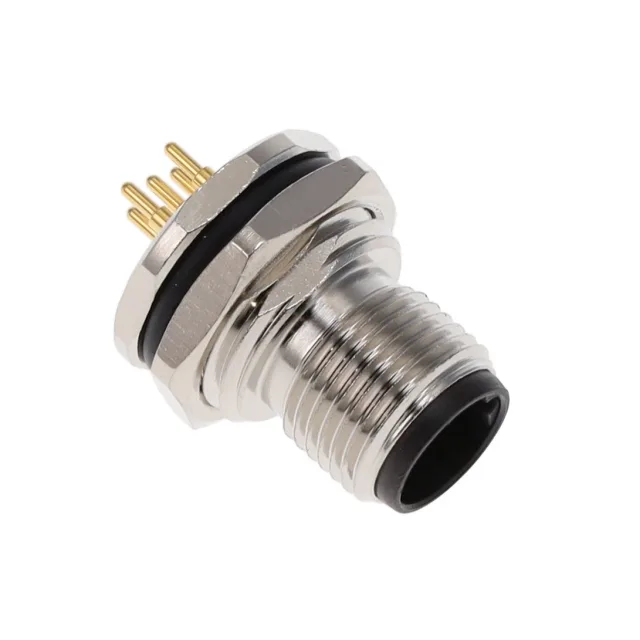

T4140412051-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity T4140412051-000 M12 Receptacle, 5 Pos, 4A

MPNT4140412051-000
Active

TE Connectivity M12 series, B-coded receptacle with male pins, 5 positions, gold-plated contacts, rated 4A at 60V, IP67 sealed, panel mount with solder termination, nickel shell.

$7.8400Ref. price · indicative, final on quote
T4140412051-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4140412051-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount, Through Hole
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating60V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationB
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

Panel-Mount M12 Receptacle with B-Coding

The TE Connectivity T4140412051-000 is a metal-shell M12 receptacle with male pins, B-coded orientation, and threaded fastening. The IP67 ingress protection rating applies only when the connector is fully mated and the threaded coupling ring is torqued — the O-ring seals at the panel face, not the thread. For the unmated panel half, a protective cap is needed to maintain the seal between shifts.

Wiring and Mounting on the Panel

Mounts through a bulkhead cutout and secures with a front-side nut — the panel thickness determines the thread engagement length.

Frequently asked questions

What is the mating connector for T4140412051-000?

It mates with a B-coded M12 female plug (cordset) that has 5 female sockets and the same threaded M12-5 shell size. The B-coding prevents cross-mating with A-coded or D-coded M12 connectors.
