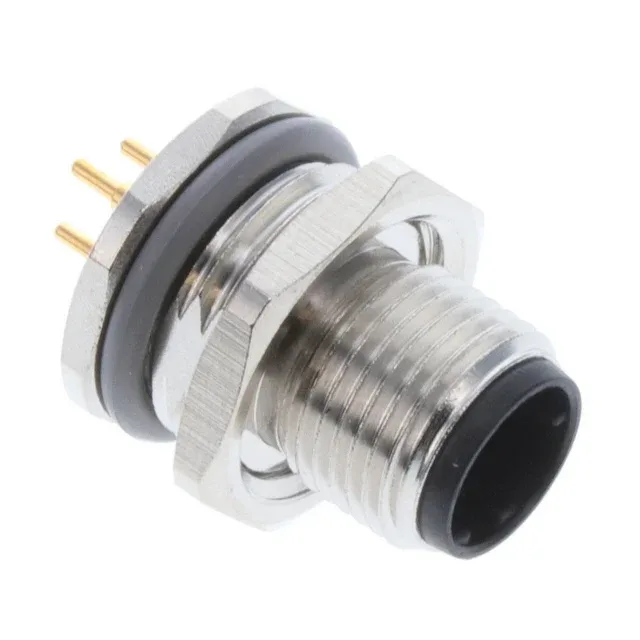

T4140512031-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

T4140512031-000 M12 D-Coded Receptacle, 3-Pos Male, IP67, 4A

MPNT4140512031-000
Active

TE Connectivity T41405 series M12 D-coded receptacle, male pins, 3 positions, 4A, 250V, IP67, gold-plated contacts, solder termination, panel mount, bulk.

$6.1200Ref. price · indicative, final on quote
T4140512031-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4140512031-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount, Through Hole
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationD
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions3
Shell size - insertM12-3
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 D-Coded Panel Receptacle for Industrial Ethernet

The T4140512031-000 is a TE Connectivity M12 D-coded receptacle with 3 male pins, designed for panel-mount industrial Ethernet and sensor-actuator networks. The D-coding keying prevents cross-mating with A- or B-coded M12 connectors — critical in mixed-protocol cabinets where Profinet or EtherNet/IP shares a panel with sensor I/O.

Termination is solder — the three male pins are soldered directly to the PCB or to a pre-wired pigtail. The bulkhead front-side nut mounts the receptacle through a panel cutout, with the threaded coupling facing outward for the mating female cordset. No crimp tool required; the field installer solders the leads and tightens the nut.

Frequently asked questions

What is the mating connector for T4140512031-000?

The D-keying prevents cross-mating with A- or B-coded connectors.
