TE Connectivity AMP Connectors T4140512041-000

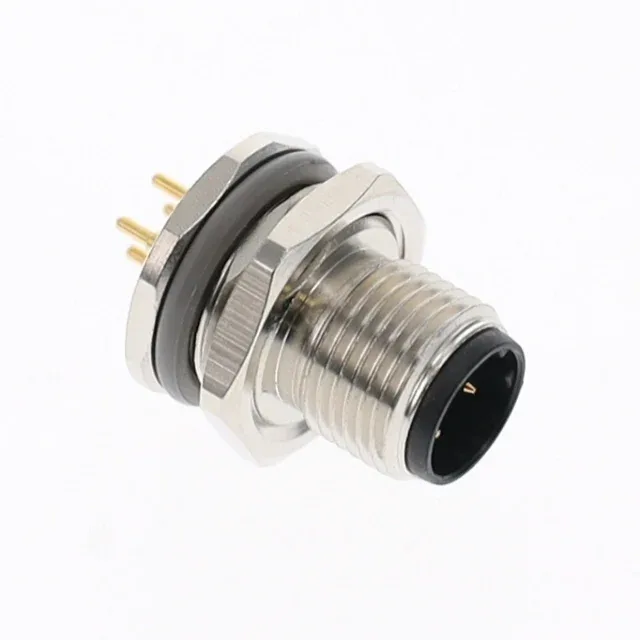

TE Connectivity T4140512041-000 M12 Receptacle, 4-Pin Male

MPN T4140512041-000
Active

TE Connectivity M12 series, D-coded receptacle, male pins, 4 positions, 4A, 250V, gold-plated contacts, IP67, panel mount, solder termination, nickel shell.

$6.9400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

T4140512041-000 key specifications
ParameterValue
SeriesM12
MountingPanel Mount, Through Hole
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating250V
Current rating4A
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6

All specifications

T4140512041-000 additional specifications
ParameterValue
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationD
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions4
Shell size - insertM12-4
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 D-Coded Receptacle — 4-Pin Male, IP67 Sealed

The T4140512041-000: It is designed for industrial automation and sensor-actuator networks where a compact, sealed circular interconnect is required. The nickel-plated copper alloy shell and UL94 V-0 polyamide insert provide mechanical durability and flame resistance for equipment inside enclosures or on machine frames. The IP67 rating means the mated pair withstands dust ingress and temporary water immersion, making it suitable for washdown zones and outdoor cabinet installations.

Mating Half and Field Fit

This D-coded receptacle mates with any M12 D-coded male cable connector or panel-mount plug. The D-coding prevents cross-mating with A-, B-, or L-coded M12 connectors — a D-coded plug will not engage with an A-coded receptacle, which is intentional for Profinet and Ethernet/IP networks where pin assignment must be preserved. The threaded coupling ring provides vibration-resistant retention; torque to 0.4 N·m per IEC 61076-2-101. Panel mount uses a bulkhead front-side nut (not included) through a 12 mm panel cutout. The solder termination requires the cable assembly to be prepared before the connector is mounted — the male pins are fixed in the insert, so the mating female contacts must be crimped onto the cable wires. Unshielded construction means the connector does not provide EMI/RFI protection; use a shielded variant or external ferrite if the application requires EMC containment.
