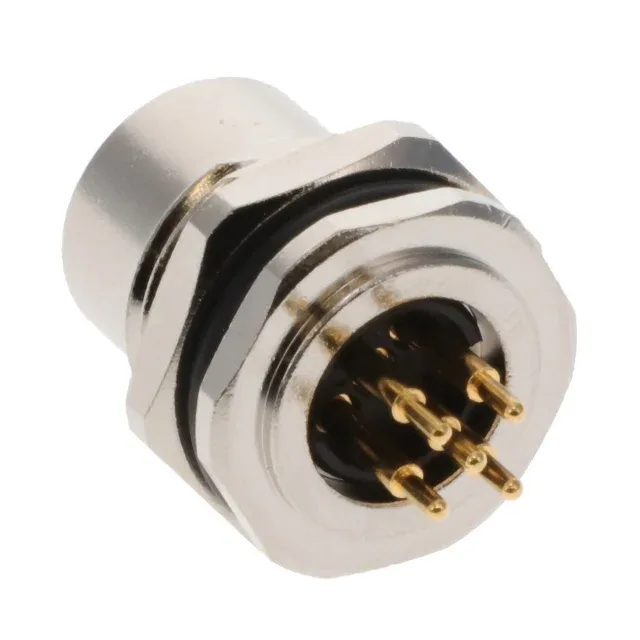

T4141012051-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

T4141012051-000 M12 A-Code Plug, 5-Pos, 4A, IP67, Active

MPNT4141012051-000
Active

TE Connectivity T4141012051-000 M12 A-coded plug, 5-position female socket, 4A, 60V, IP67, gold-plated contacts, solder termination, panel mount with bulkhead nut.

$8.2300Ref. price · indicative, final on quote
T4141012051-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4141012051-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount, Through Hole
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating60V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationA
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

What the A-Code and 5 Positions Mean for Your Harness

The T4141012051-000 is a TE Connectivity M12 A-coded circular plug with 5 female sockets, intended for sensor/actuator signal and low-power distribution in industrial automation. The A-coding orientation is the standard for DeviceNet, IO-Link, and most 5-pin sensor interfaces — a B-coded or D-coded receptacle will not mate, so confirm the mating half carries the same A-code keying. The 5 positions at 4 A per contact give you four signal lines plus a shield ground or a fifth power return, depending on the pin assignment.

IP67 Sealing and Panel Mount — Where This Plug Belongs

The bulkhead-front-side-nut mounting lets you fasten it through a panel cutout from the outside, with the threaded coupling ring securing the cable side. The nickel-plated copper alloy shell and PA66 insert (UL94 V-0) resist the cutting fluids and solvents common in machine-tool environments.

Frequently asked questions

What is the mating connector for T4141012051-000?

The mating half is an M12 A-coded receptacle with 5 male pins. The A-code keying is non-negotiable — a B-coded or D-coded receptacle will not mate.

Is T4141012051-000 shielded?

No — the T4141012051-000 is listed as unshielded. For environments requiring EMI protection, a shielded M12 cable assembly or a different shell variant would be needed.
