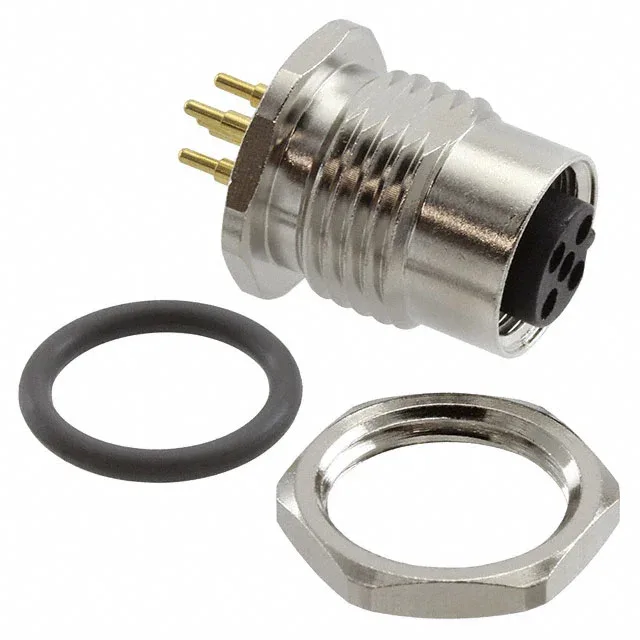

T4141412051-000 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE T4141412051-000 M12 Plug, 5 Pos, 4A, IP67, Gold

MPNT4141412051-000
Active

TE Connectivity M12 circular connector, T4141412051-000, Plug Female Sockets, 5 positions, M12-5 shell, 4A, 60V, gold contacts, IP67, threaded, panel mount, solder termination.

$8.2300Ref. price · indicative, final on quote
T4141412051-000 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

T4141412051-000 Technical Specifications
ParameterValue
SeriesM12
Mounting typePanel Mount, Through Hole
Connector typePlug, Female Sockets
Fastening typeThreaded
Voltage rating60V
Current rating4A
Ingress protectionIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationB
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

M12 B-coded plug, 5-position, IP67 — field-service ready

The TE Connectivity T4141412051-000 is an M12 B-coded circular plug with 5 female sockets, rated 4 A per contact at 60 V. Threaded coupling and a bulkhead front-side nut mount let you panel-secure it through a cutout, with the solder tails terminating inside the enclosure. Gold-over-nickel mating contacts (3.00 µin gold) handle repeated connect-disconnect cycles without fretting corrosion, making this a straight swap for any M12 B-coded line sensor or actuator drop.

Rated 4 A at 60 V — signal and low-power duty

4 A per contact at 60 V covers the majority of M12 sensor, actuator, and fieldbus I/O connections. The current capacity is limited by the contact density in the M12-5 shell, not the contact itself — for higher loads you step up to M12 A-coded power variants.

Active production — no EOL concern

Lifecycle status is Active with RoHS compliance confirmed.
