TE Connectivity AMP Connectors T4142412051-000

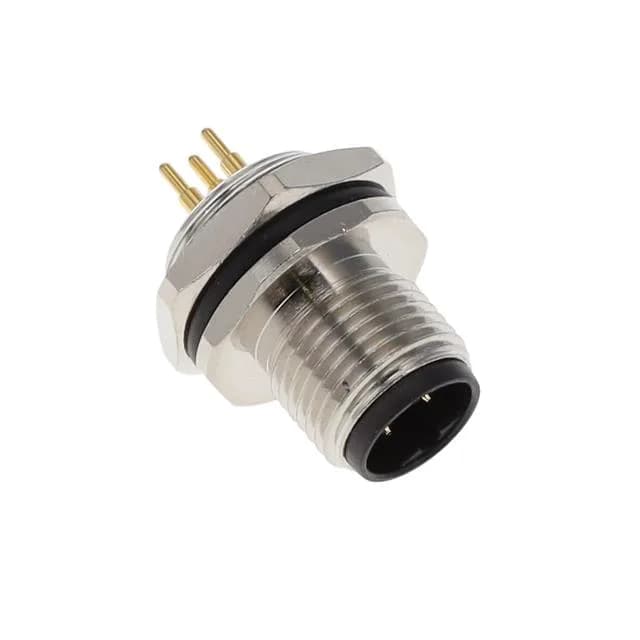

TE T4142412051-000 M12 B-Code Receptacle, 5-Pin Male, IP67

MPN T4142412051-000
Active

TE Connectivity M12 B-coded receptacle, 5-position male pins, gold-plated contacts, IP67, 4A at 60V, solder termination, panel mount with bulkhead nut.

$7.8400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

T4142412051-000 key specifications
ParameterValue
SeriesM12
MountingPanel Mount, Through Hole
Connector typeReceptacle, Male Pins
Fastening typeThreaded
Voltage rating60V
Current rating4A
IP ratingIP67 - Dust Tight, Waterproof
Mounting featureBulkhead - Front Side Nut
Operating temperature-40°C ~ 85°C
ColorSilver
Shell materialCopper Alloy
Insert materialPolyamide (PA66), Nylon 6/6

All specifications

T4142412051-000 additional specifications
ParameterValue
Contact materialCopper Alloy
Primary materialMetal
Material flammability ratingUL94 V-0
PackageBulk
ShieldingUnshielded
OrientationB
TerminationSolder
ApplicationsIndustrial
Shell finishNickel
Positions5
Shell size - insertM12-5
Contact finish - matingGold
Contact finish thickness - mating3.00µin (0.076µm)

Product details

What This M12 B-Coded Receptacle Is and Where It Goes

Rated 4 A per contact at 60 V, with gold-over-nickel plating on the mating side (3.00 µin thickness). The 5 positions match the standard M12-5 pinout for B-coded fieldbus nodes; the coding ensures you cannot accidentally plug a sensor into a power line.

Mounting and Termination Notes

Panel mount with a bulkhead — front side nut — so the receptacle stays fixed while the cordset screws on from the outside. Termination is solder cup: you tin the wire, insert into the cup, and flow solder. No crimp tool needed, but give it strain relief or it'll pull apart under cable tension. The nickel-plated copper alloy shell and silver colour are standard for M12 metal-body receptacles; the threaded fastening type mates with the matching B-coded plug.
