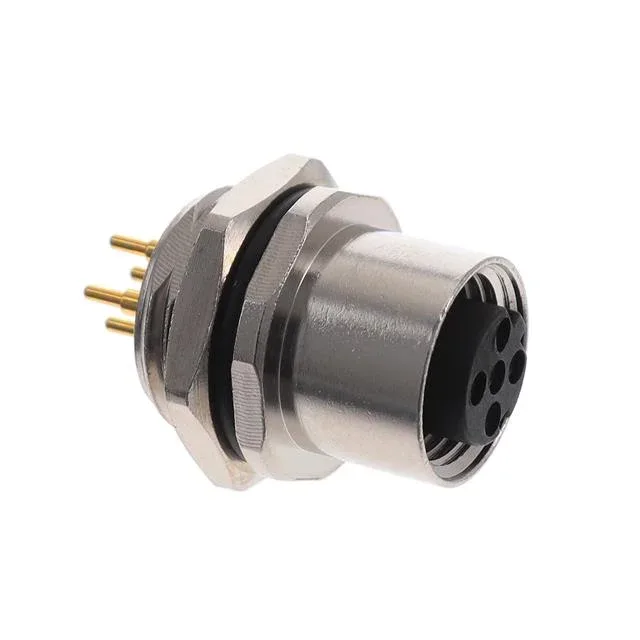

TE Connectivity M12 circular connector, plug female sockets, 4 positions, D-coded, gold-plated contacts, 4A, 250V, IP67, threaded coupling, panel mount through hole, solder termination.
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Copper Alloy |
| Insert material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Shielding | Unshielded |
| Orientation | D |
| Termination | Solder |
| Applications | Industrial |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.00µin (0.076µm) |
The T4143512041-000: The metal shell with nickel finish and copper alloy contacts suit industrial environments where washdown, dust, and temperature swings from -40°C to 85°C are routine.
Listed as Active with RoHS compliance confirmed.
This is a 4-position M12 plug with female sockets, D-coded. The D-coding ensures it only mates with a D-coded M12 receptacle, preventing cross-mating with A-, B-, or C-coded counterparts.
Yes, the T4143512041-000 is RoHS Compliant.
No, this connector is listed as Unshielded. The metal shell provides some EMI containment through the nickel finish, but it is not a shielded connector with a dedicated ground path.
