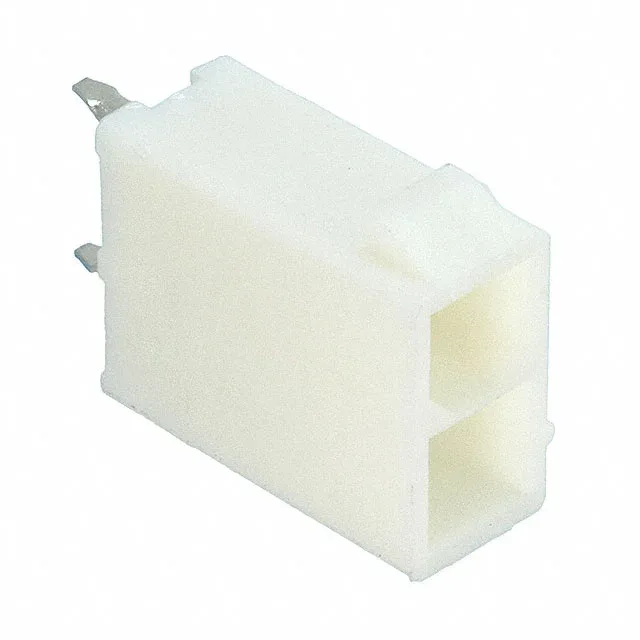

TE Connectivity AMP Connectors 1586 Pin Headers Series

13 variants · TE Connectivity AMP ConnectorsAll Pin Headers →

About the TE Connectivity AMP Connectors 1586 Pin Headers Series

IC Source Direct is a China connector distributor, supplier and independent procurement agent for TE Connectivity AMP Connectors 1586 Pin Headers Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors 1586 Pin Headers Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of General Purpose, Industrial, Lighting, connector type of Header and contact finish - mating of Tin. Variants differ by insulation material, material flammability rating and operating temperature, so you can match the exact insulation material your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1586 Pin Headers Series part numbers are active and orderable.

Select a variant by

Insulation material: Polyamide (PA), Nylon · Polyamide (PA66), Nylon 6/6
Material flammability rating: UL94 V-0 · UL94 V-2
Operating temperature: -40°C ~ 105°C · -40°C~105°C
Package: Bulk · Tray
Positions: 2 · 4 · 6 · 8
Row spacing - mating: - · 0.165\" (4.20mm)
Rows: 1 · 2
Pitch: - · 0.165\" (4.20mm)

Shared specifications

Applications: General Purpose, Industrial, Lighting
Connector type: Header
Contact finish - mating: Tin
Contact finish - post: Tin
Contact finish thickness - mating: 80.0µin (2.03µm)
Contact finish thickness - post: 80.0µin (2.03µm)
Contact length - post: 0.138\" (3.50mm)
Contact material: Brass Alloy
Contact shape: Square
Current rating: 9A
Fastening type: Locking Ramp
Insulation color: Natural

Variant comparison

Parameter	1586037-2	1586037-4	1586037-6	1586037-8	1586038-2	1586038-4
Insulation material	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material flammability rating	UL94 V-2	UL94 V-2	UL94 V-2	UL94 V-2	UL94 V-0	UL94 V-0
Operating temperature	-40°C~105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C~105°C
Package	Bulk	Bulk	Bulk	Bulk	Tray	Tray
Positions	2	4	6	8	2	4
Row spacing - mating	-	0.165\" (4.20mm)	0.165\" (4.20mm)	0.165\" (4.20mm)	0.165\" (4.20mm)	0.165\" (4.20mm)
Rows	1	2	2	2	2	2
Pitch	-	0.165\" (4.20mm)	0.165\" (4.20mm)	0.165\" (4.20mm)	—	0.165\" (4.20mm)

Request a quote on any TE Connectivity AMP Connectors 1586 Pin Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
