TE Connectivity AMP Connectors 1586038-2 — Pin Headers

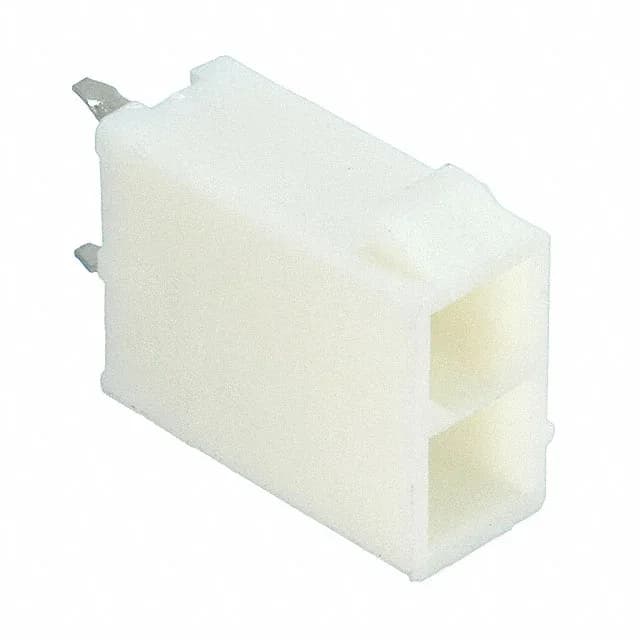

1586038-2 TE VAL-U-LOK 2-Position Dual-Row Header

MPN1586038-2
Active

TE Connectivity VAL-U-LOK 1586038-2, 2-position dual-row board-to-wire header, 0.165-inch (4.20mm) row spacing, 9 A per circuit at 600VAC, tin-plated brass contacts, locking ramp, 4-wall shrouded, through-hole solder, -40 to 105 °C, UL94 V-0 polyamide insulation, tray package.

$0.4600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVAL-U-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1586038-2 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating9A
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1586038-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Positions2
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

2-position dual-row header: what the pin count means for your BOM

The 1586038-2 is a 2-position, dual-row header from TE's VAL-U-LOK series — board-to-wire, through-hole solder, with a 4-wall shroud and locking ramp. The dual-row arrangement means the second row is unpopulated; your mating half must also be a dual-row receptacle to engage the locking ramp correctly. Rated 9 A per circuit at 600VAC, the current limit is per contact, not a sum across both positions.

Peer comparison: 1586038-2 vs. 1586038-4

The 1586038-4 is the 4-position version of the same dual-row header, identical in pitch (0.165" row spacing), current rating (9 A), voltage (600VAC), and locking ramp. If your BOM needs more circuits, the -4 is a drop-in footprint match — same shroud, same mounting, same termination.

Frequently asked questions

What is the pin configuration of 1586038-2?

It is a 2-position, dual-row header with all positions loaded. The second row is present in the housing but unpopulated — the mating receptacle must be dual-row to engage the locking ramp.

Is 1586038-2 RoHS compliant?

Yes, ROHS3 compliant.

What is the closest replacement or equivalent for 1586038-2?

The 1586038-4 is the 4-position sibling in the same VAL-U-LOK series. It shares the same pitch, current rating, voltage, locking ramp, and shroud — a direct footprint match for a higher circuit count.
