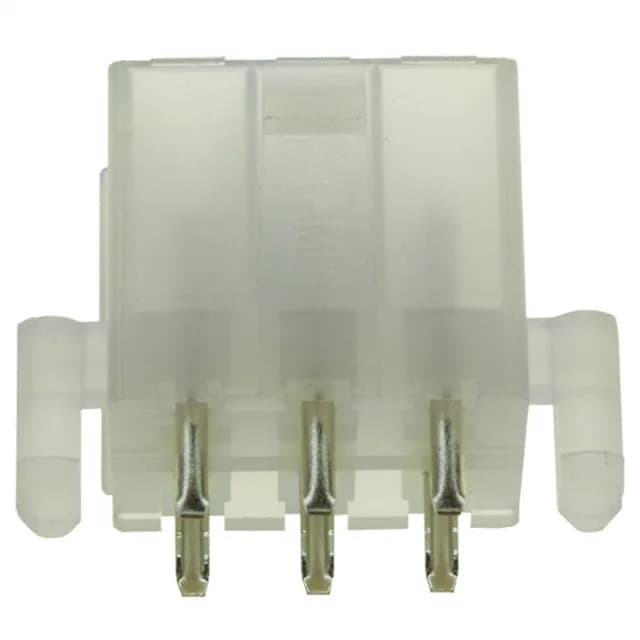

TE Connectivity VAL-U-LOK, Board to Cable/Wire, Header, 6 Positions, 2 Rows, 0.165" (4.20mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Board Lock, Locking Ramp, Tin Mating Contact Finish, 9A, 600VAC, -40°C ~ 105°C, UL94 V-2, Active
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 6 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
It uses a 4.20 mm pitch and a 0.165" row spacing, which sets the footprint for the PCB layout. The operating temperature range is -40°C to 105°C, and the housing material is UL94 V-2 rated polyamide 6/6.
We source this part per RFQ — no shelf-stock guarantee, but the active status means lead times are typically manageable.
The mating pitch is 0.165" (4.20 mm), and the row spacing is also 0.165" (4.20 mm).
Yes, it mates with the standard VAL-U-LOK receptacle housings and crimp terminals. The 4.20 mm pitch and locking ramp are common across the series.
