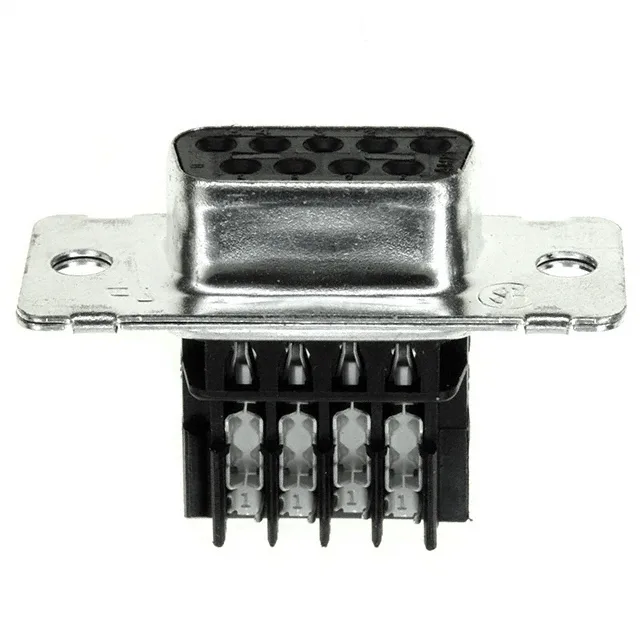

1-745491-8
TE Connectivity AMP Connectors
9BulkBlack
Ref. price$6.2000
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 174549 Series
11 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 174549 Series
The TE Connectivity AMP Connectors 174549 Series series groups 11 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of -, color of Black and contact finish of Gold. Variants differ by connector type, contact finish thickness and features, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 174549 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish thickness
- - · 1.00µin (0.025µm) · 30.0µin (0.76µm) · Flash
- Features
- - · Grounding Indents
- Package
- Bulk · Tray
- Positions
- 9 · 15 · 25 · 37
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B) · 4 (DC, C)
- Wire gauge
- 20-22 AWG · 22-26 AWG · 26-30 AWG
Shared specifications
- Backset spacing
- -
- Color
- Black
- Contact finish
- Gold
- Contact form
- -
- Contact material
- Phosphor Bronze
- Current rating
- Varies by Wire Gauge
- Dielectric material
- Thermoplastic, Glass Filled
- Flange feature
- Housing/Shell (Unthreaded)
- Gender
- Signal
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Mounting type
- Free Hanging (In-Line)
Variant comparison
| Parameter | 1-745491-8 | 1-745491-6 | 1-745493-4 | 1-745491-7 | 1-745491-9 | 1-745492-9 |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins |
| Contact finish thickness | 1.00µin (0.025µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | Flash |
| Features | - | - | - | - | - | Grounding Indents |
| Package | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk |
| Positions | 9 | 9 | 15 | 9 | 9 | 9 |
| Shell size, connector layout | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) |
| Wire gauge | 22-26 AWG | 26-30 AWG | 22-26 AWG | 22-26 AWG | 20-22 AWG | 20-22 AWG |
Request a quote on any TE Connectivity AMP Connectors 174549 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 174549 Series variants differ?
- TE Connectivity AMP Connectors 174549 Series part numbers differ by connector type, contact finish thickness, features and package. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 174549 Series part numbers are listed?
- 11 TE Connectivity AMP Connectors 174549 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 174549 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 174549 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
