5406528-1
TE Connectivity AMP Connectors
Board GuideCat5Unshielded
Ref. price$4.2300
Lead time on requestGet quote ›

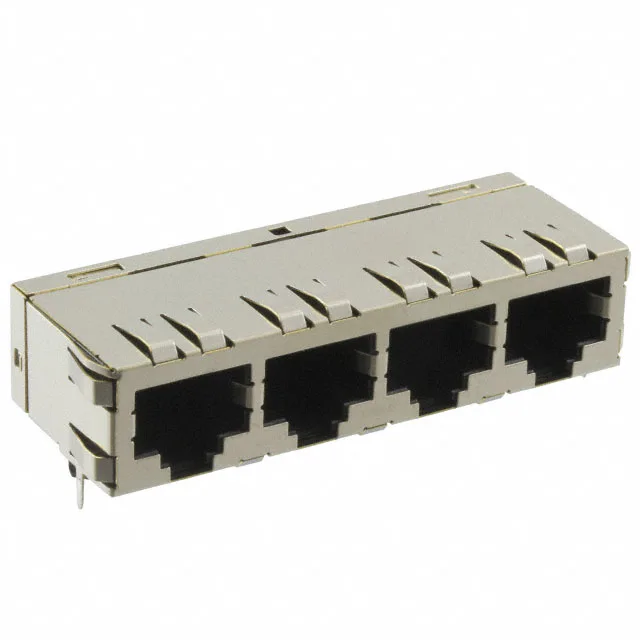

TE Connectivity AMP Connectors 5406 Series
21 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 5406 Series
The TE Connectivity AMP Connectors 5406 Series series groups 21 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Jack, contact finish of Gold and contact finish thickness of 50.0µin (1.27µm). Variants differ by features, housing material and number of ports, so you can match the exact features your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 5406 Series part numbers are active and orderable.
Select a variant by
- Features
- Board Guide · Board Lock, Panel Stops
- Housing material
- Polyamide (PA), Nylon · Thermoplastic
- Number of ports
- 1 · 4
- Number of positions (Contacts)
- 6p6c (RJ11, RJ12, RJ14, RJ25) · 8p8c (RJ45, Ethernet)
- Ratings
- Cat3 · Cat4 · Cat5
- Shielding
- Shielded · Shielded, EMI Finger · Unshielded
- Tab direction
- Down · Up
Shared specifications
- Connector type
- Jack
- Contact finish
- Gold
- Contact finish thickness
- 50.0µin (1.27µm)
- Contact material
- Phosphor Bronze
- Ingress protection
- -
- LED color
- Does Not Contain LED
- Mounting type
- Through Hole
- Operating temperature
- -40°C ~ 85°C
- Orientation
- 90° Angle (Right)
- Package
- Tray
- Rows
- 1
- Termination
- Solder
Variant comparison
| Parameter | 5406528-1 | 5406203-3 | 5406216-1 | 5406217-1 | 5406275-3 | 5406281-3 |
|---|---|---|---|---|---|---|
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| Housing material | Thermoplastic | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Number of ports | 4 | 4 | 1 | 1 | 4 | 4 |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) | 8p8c (RJ45, Ethernet) |
| Ratings | Cat5 | Cat5 | Cat4 | Cat5 | Cat5 | Cat5 |
| Shielding | Unshielded | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger |
| Tab direction | Up | Down | Down | Down | Down | Down |
