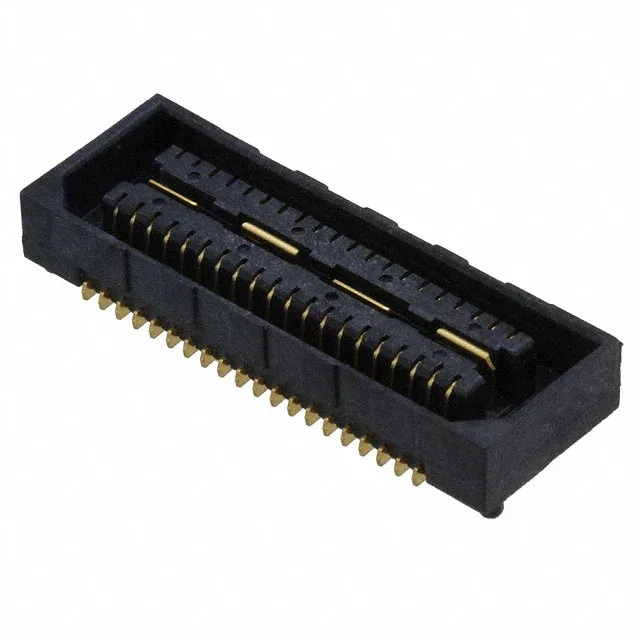

6-1658014-1
TE Connectivity AMP Connectors
0.031\" (0.80mm)MICTORTape & Reel (TR) Cut Tape (CT)
Ref. price$8.1100
Lead time on requestGet quote
TE Connectivity AMP Connectors 6165 Mezzanine Stacking Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 6165 Mezzanine Stacking Series
The TE Connectivity AMP Connectors 6165 Mezzanine Stacking Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common contact finish of Gold, contact finish thickness of 10.0µin (0.25µm) and features of Board Guide, Ground Bus (Plane). Variants differ by connector type, height above board and mated stacking heights, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 6165 Mezzanine Stacking Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Outer Shroud Contacts · Receptacle, Center Strip Contacts
- Height above board
- 0.128\" (3.25mm) · 0.278\" (7.06mm)
- Mated stacking heights
- 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm · 8mm
Shared specifications
- Contact finish
- Gold
- Contact finish thickness
- 10.0µin (0.25µm)
- Features
- Board Guide, Ground Bus (Plane)
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Pitch
- 0.031\" (0.80mm)
- Positions
- 40
- Rows
- 2
Variant comparison
| Parameter | 6-1658012-1 | 6-1658014-1 |
|---|---|---|
| Connector type | Receptacle, Center Strip Contacts | Plug, Outer Shroud Contacts |
| Height above board | 0.128\" (3.25mm) | 0.278\" (7.06mm) |
| Mated stacking heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm | 8mm |
Request a quote on any TE Connectivity AMP Connectors 6165 Mezzanine Stacking Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
