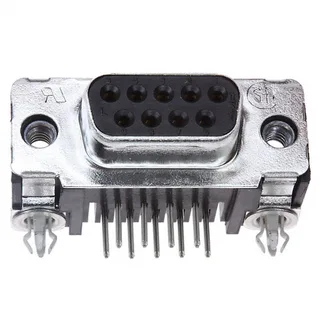

747844-6
TE Connectivity AMP Connectors
9Board LockBlack
Ref. price$6.0800
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 74784 Series
14 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 74784 Series
The TE Connectivity AMP Connectors 74784 Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common backset spacing of 0.318\" (8.08mm), color of Black and contact finish of Gold. Variants differ by connector type, contact finish thickness and contact material, so you can match the exact connector type your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 74784 Series part numbers are active and orderable.
Select a variant by
- Connector type
- Plug, Male Pins · Receptacle, Female Sockets
- Contact finish thickness
- - · 30.0µin (0.76µm) · Flash
- Contact material
- Brass · Phosphor Bronze
- Dielectric material
- - · Thermoplastic
- Features
- Board Lock · Board Lock, Ground Strap · Board Lock, Ground Strap, Grounding Indents
- Flange feature
- Housing/Shell (4-40) · Housing/Shell (Unthreaded) · Mating Side, Female Screwlock (4-40)
- Positions
- 9 · 15 · 25
- Shell size, connector layout
- 1 (DE, E) · 2 (DA, A) · 3 (DB, B)
Shared specifications
- Backset spacing
- 0.318\" (8.08mm)
- Color
- Black
- Contact finish
- Gold
- Contact form
- -
- Current rating
- 6A
- Gender
- Signal
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Mounting type
- Through Hole, Right Angle
- Operating temperature
- -55°C ~ 105°C
- Package
- Tray
- Rows
- 2
Variant comparison
| Parameter | 747844-6 | 747840-4 | 747841-6 | 747842-4 | 747842-6 | 747844-2 |
|---|---|---|---|---|---|---|
| Connector type | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets |
| Contact finish thickness | 30.0µin (0.76µm) | - | - | - | - | 30.0µin (0.76µm) |
| Contact material | Phosphor Bronze | Brass | Brass | Brass | Brass | Phosphor Bronze |
| Dielectric material | Thermoplastic | - | - | - | - | Thermoplastic |
| Features | Board Lock | Board Lock, Ground Strap, Grounding Indents | Board Lock, Ground Strap, Grounding Indents | Board Lock, Ground Strap, Grounding Indents | Board Lock, Ground Strap, Grounding Indents | Board Lock |
| Flange feature | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) |
| Positions | 9 | 9 | 15 | 25 | 25 | 9 |
| Shell size, connector layout | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 3 (DB, B) | 3 (DB, B) | 1 (DE, E) |
Request a quote on any TE Connectivity AMP Connectors 74784 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 74784 Series variants differ?
- TE Connectivity AMP Connectors 74784 Series part numbers differ by connector type, contact finish thickness, contact material and dielectric material. Use the selection guide above to pick by connector type.
- How many TE Connectivity AMP Connectors 74784 Series part numbers are listed?
- 14 TE Connectivity AMP Connectors 74784 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 74784 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 74784 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
