796634-2
TE Connectivity AMP Connectors
2-40°C ~ 110°CPlug, Female Sockets
Ref. price$1.3100
Lead time on requestGet quote
TE Connectivity AMP Connectors 79663 Series
5 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 79663 Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for TE Connectivity AMP Connectors 79663 Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors 79663 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Green, contact material of Phosphor Bronze and contact mating finish of Tin. Variants differ by operating temperature, positions and positions per level, so you can match the exact operating temperature your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 79663 Series part numbers are active and orderable.
Select a variant by
- Operating temperature
- -40°C ~ 110°C · -40°C~110°C
- Positions
- 2 · 3 · 4 · 5 · 6
- Positions per level
- 2 · 3 · 4 · 5 · 6
Shared specifications
- Color
- Green
- Contact material
- Phosphor Bronze
- Contact mating finish
- Tin
- Contact tail length
- -
- Current - IEC
- -
- Current - UL
- 15 A
- Features
- Retention Latches (Non-Wire Side)
- Header orientation
- -
- Housing material
- Polyamide (PA66), Nylon 6/6
- Insulation height
- 0.610\" (15.49mm)
- IP rating
- -
- Material flammability rating
- UL94 V-0
Variant comparison

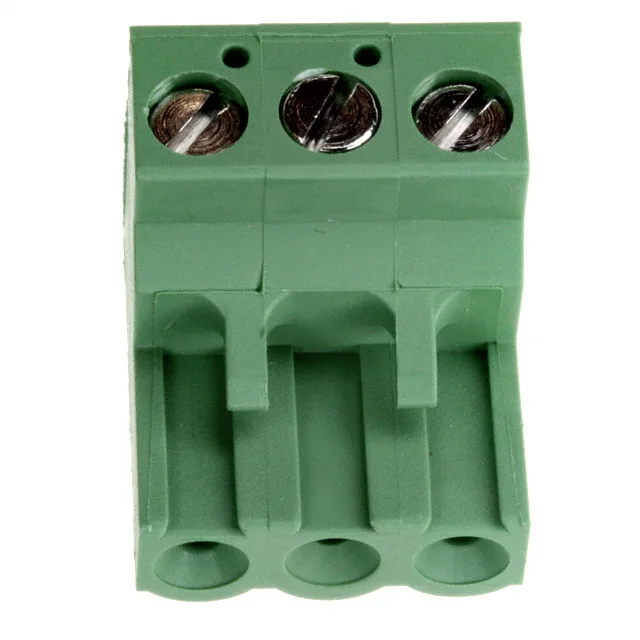

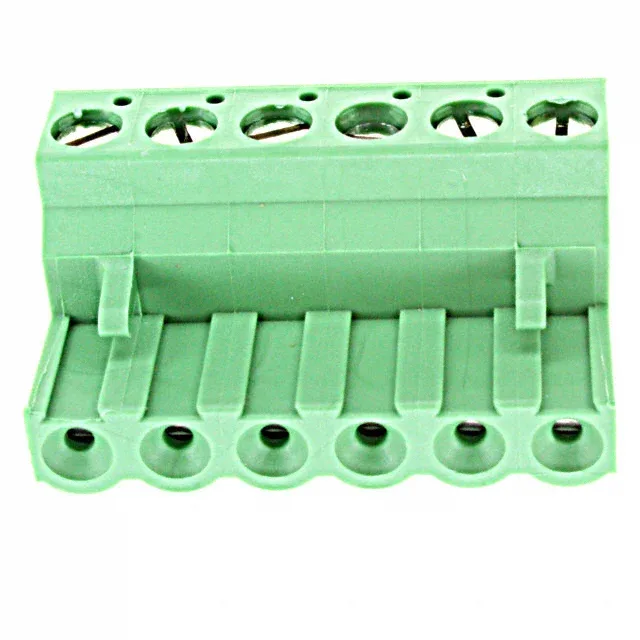

| Parameter | 796634-2 | 796634-3 | 796634-4 | 796634-5 | 796634-6 |
|---|---|---|---|---|---|
| Operating temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C~110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Positions | 2 | 3 | 4 | 5 | 6 |
| Positions per level | 2 | 3 | 4 | 5 | 6 |
Request a quote on any TE Connectivity AMP Connectors 79663 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
