796861-2
TE Connectivity AMP Connectors
2Mating Flange, Retention Latches (Non-Wire Side)-40°C~110°C
Ref. price$4.9400
Lead time on requestGet quote ›

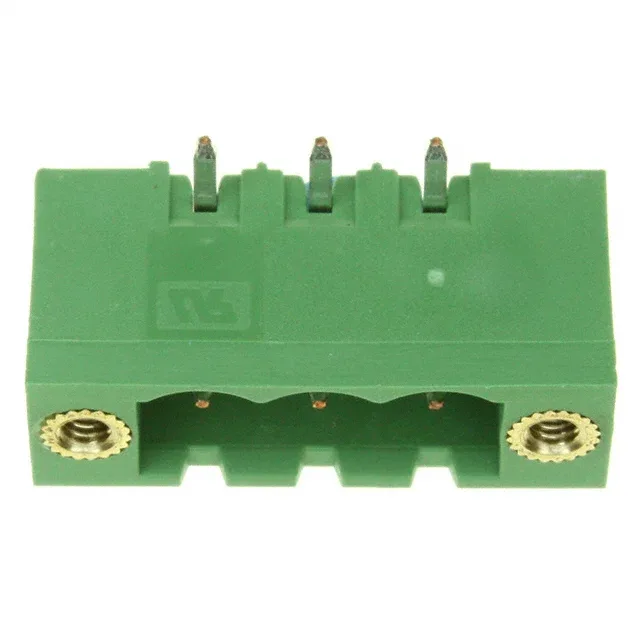

TE Connectivity AMP Connectors 79686 Series
13 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 79686 Series
The TE Connectivity AMP Connectors 79686 Series series groups 13 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common color of Green, contact mating finish of Tin and current - IEC of -. Variants differ by contact material, contact tail length and features, so you can match the exact contact material your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 79686 Series part numbers are active and orderable.
Select a variant by
- Contact material
- Copper Alloy · Phosphor Bronze
- Contact tail length
- - · 0.138\" (3.50mm)
- Features
- Mating Flange · Mating Flange, Retention Latches (Non-Wire Side)
- Header orientation
- - · 90°, Right Angle · Vertical
- Insulation height
- 0.329\" (8.36mm) · 0.472\" (12.00mm) · 0.984\" (25.00mm)
- Mounting type
- Free Hanging (In-Line) · Through Hole
- Operating temperature
- -40°C ~ 110°C · -40°C~110°C
- Pitch
- 0.197\" (5.00mm) · 0.200\" (5.08mm)
Shared specifications
- Color
- Green
- Contact mating finish
- Tin
- Current - IEC
- -
- Current - UL
- 15 A
- Housing material
- Polyamide (PA66), Nylon 6/6
- Ingress protection
- -
- Material flammability rating
- UL94 V-0
- Number of levels
- 1
- Package
- Bulk
- Voltage - UL
- 300 V
- Wire gauge or range - mm2
- -
Variant comparison
| Parameter | 796861-2 | 796861-8 | 796864-3 | 796864-4 | 796864-6 | 796866-2 |
|---|---|---|---|---|---|---|
| Contact material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Copper Alloy |
| Contact tail length | - | - | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) | 0.138\" (3.50mm) |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Mating Flange, Retention Latches (Non-Wire Side) | Mating Flange | Mating Flange | Mating Flange | Mating Flange |
| Header orientation | - | - | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle |
| Insulation height | 0.984\" (25.00mm) | 0.984\" (25.00mm) | 0.329\" (8.36mm) | 0.329\" (8.36mm) | 0.329\" (8.36mm) | 0.329\" (8.36mm) |
| Mounting type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Through Hole |
| Operating temperature | -40°C~110°C | -40°C~110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C~110°C |
| Pitch | 0.200\" (5.08mm) | 0.200\" (5.08mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.197\" (5.00mm) | 0.200\" (5.08mm) |
Request a quote on any TE Connectivity AMP Connectors 79686 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 79686 Series variants differ?
- TE Connectivity AMP Connectors 79686 Series part numbers differ by contact material, contact tail length, features and header orientation. Use the selection guide above to pick by contact material.
- How many TE Connectivity AMP Connectors 79686 Series part numbers are listed?
- 13 TE Connectivity AMP Connectors 79686 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 79686 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 79686 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
