85829-4
TE Connectivity AMP Connectors
4Board to Board or CableAMPMODU Mod I
Ref. price$2.9900
Lead time on requestGet quote

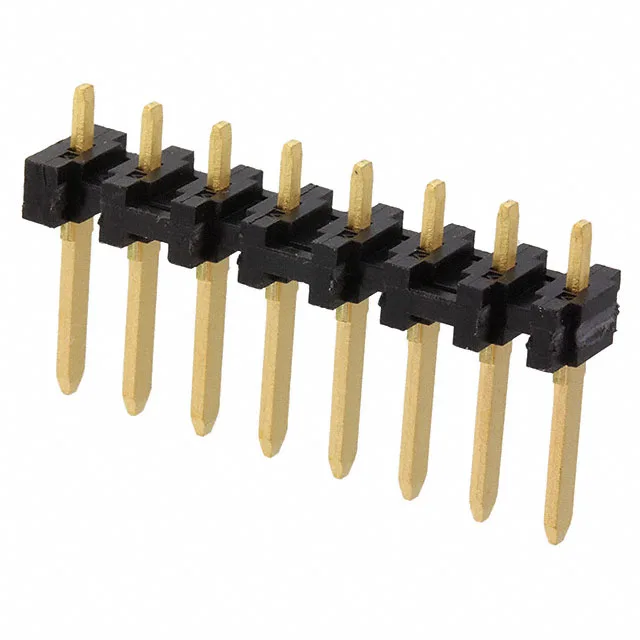

TE Connectivity AMP Connectors 85829 Pin Headers Series
2 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 85829 Pin Headers Series
The TE Connectivity AMP Connectors 85829 Pin Headers Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Header and contact finish - mating of Gold. Variants differ by positions, so you can match the exact positions your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 85829 Pin Headers Series part numbers are active and orderable.
Select a variant by
- Positions
- 4 · 8
Shared specifications
- Applications
- -
- Connector type
- Header
- Contact finish - mating
- Gold
- Contact finish - post
- Gold
- Contact finish thickness - mating
- 30.0µin (0.76µm)
- Contact finish thickness - post
- Flash
- Contact length - mating
- 0.405\" (10.29mm)
- Contact length - post
- 0.125\" (3.18mm)
- Contact material
- Brass
- Contact shape
- Rectangular
- Current rating
- 5A
- Fastening type
- Push-Pull
Request a quote on any TE Connectivity AMP Connectors 85829 Pin Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
