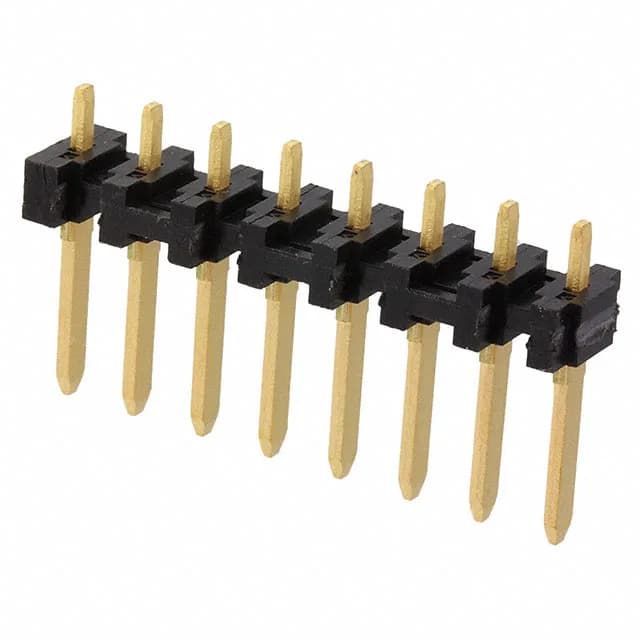

85829-8 TE Connectivity AMP Connectors Header, 8 Pos, 3.96mm

MPN85829-8
Active

TE Connectivity AMP Connectors AMPMODU Mod I unshrouded header, 8 positions, single row, 3.96mm pitch, through-hole solder termination, gold-plated contacts, rated 5A, UL94 V-0.

$6.0000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 85829-8 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

85829-8 key specifications
ParameterValue
SeriesAMPMODU Mod I
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating5A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.125\" (3.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

85829-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.156\" (3.96mm)
Positions8
Contact finish - postGold
Contact length - post0.125\" (3.18mm)
Overall contact length0.655\" (16.64mm)
Contact finish - matingGold
Contact length - mating0.405\" (10.29mm)
Contact finish thickness - postFlash
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-position, 3.96mm pitch unshrouded header

The 85829-8 is an 8-circuit, single-row unshrouded header from the AMPMODU Mod I series, with a 3.96mm (0.156") pitch that sets the board footprint and the per-contact current ceiling. The header mates with standard 0.156" pitch receptacles and accepts crimp terminals for wire-to-board or board-to-board connections.

The 3.96mm pitch and 0.125" (3.18mm) post length set the PCB drill pattern and standoff height. For a build-to-print assembly, the full BOM includes the header, the mating receptacle (e.g., TE 640526-8 or equivalent), and the corresponding crimp terminals (sold separately).

Frequently asked questions

What is the pinout and landing pattern for 85829-8?

The pinout is a single row of 8 male pins on 3.96mm (0.156") centers. The PCB footprint requires 8 plated through-holes at that pitch, with a 0.125" (3.18mm) post length for the solder tails. No polarization keying is provided by the header itself.

Does 85829-8 have a polarization or keying feature?

No. The header is unshrouded with a push-pull fastening type, so there is no mechanical keying or polarization. Orientation is determined by the PCB layout and the mating receptacle's keying, if present.
