Active 4-Position Header for Board-to-Board or Cable Interconnects

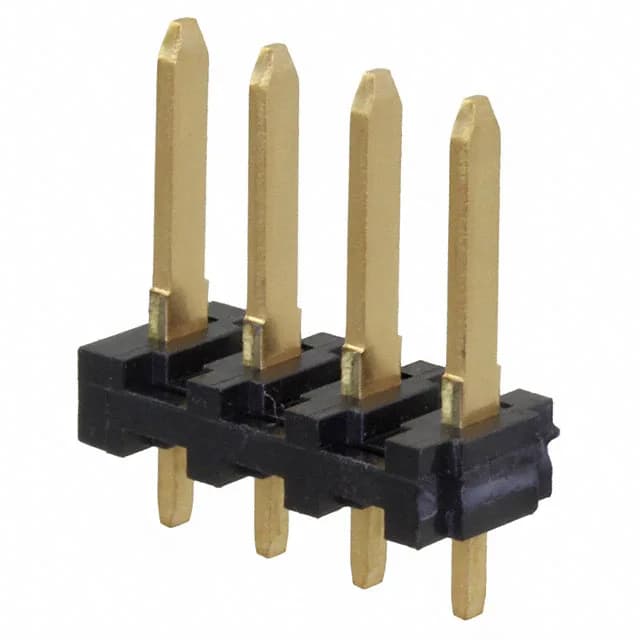

The 85829-4 is an active-production, unshrouded header from the AMPMODU Mod I series, with 4 positions in a single row on 0.156" (3.96mm) pitch. It mates with matching AMPMODU Mod I receptacles for board-to-board or cable connections. The through-hole solder termination and push-pull fastening make it a straightforward fit for low-density signal or low-power circuits.
Pitch, Current, and Plating That Match the Application
The 0.156" pitch gives you room to route traces between pads on a standard 2-layer board without tight clearance rules. Rated 5A per contact, this header handles signal-level loads and low-current power distribution. The 30.0µin gold on the mating surface supports repeated mating cycles—useful in field-serviceable or test-fixture applications where the connector sees regular disconnect and reconnect.
Sourcing and Lifecycle: Active Production, No EOL Watch
The 85829-4 is listed as Active with no end-of-life notice on record. It is RoHS3 compliant. Sourced per RFQ against your BOM quantity—availability and current pricing confirmed at quote time.
