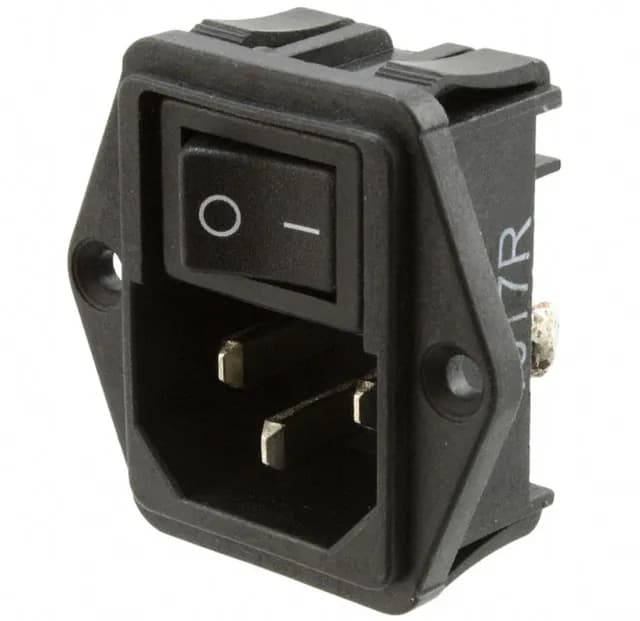

TE Connectivity Corcom Filters C series power entry module, order code 1-1609112-4, IEC 320-C14 receptacle, male blades, 3 positions, 15A at 120/250VAC, unfiltered, panel mount flange, quick-connect 0.189" (4.8mm) termination, switch on-off.
| Parameter | Value |
|---|---|
| Series | C, Corcom |
| Filter type | Unfiltered - Commercial |
| Mounting | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 120/250VAC |
| Current rating - appliance inlet | 15A |
| Panel cutout | Rectangular - 26.70mm x 31.60mm |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Termination | Quick Connect - 0.189\" (4.8mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | No |
| Positions | 3 |
The 1-1609112-4 is a 3-position IEC 320-C14 power entry module from the TE Corcom C series, rated 15A at 120/250VAC for unfiltered commercial equipment. It mounts via a panel flange into a rectangular 26.70mm x 31.60mm cutout and terminates with quick-connect 0.189" (4.8mm) tabs, with an integrated on-off switch.
The module is approved by CSA, UL, and VDE, and is ROHS3 compliant.
