TE Connectivity Corcom Filters 1-1609117-6 — Power Entry Modules

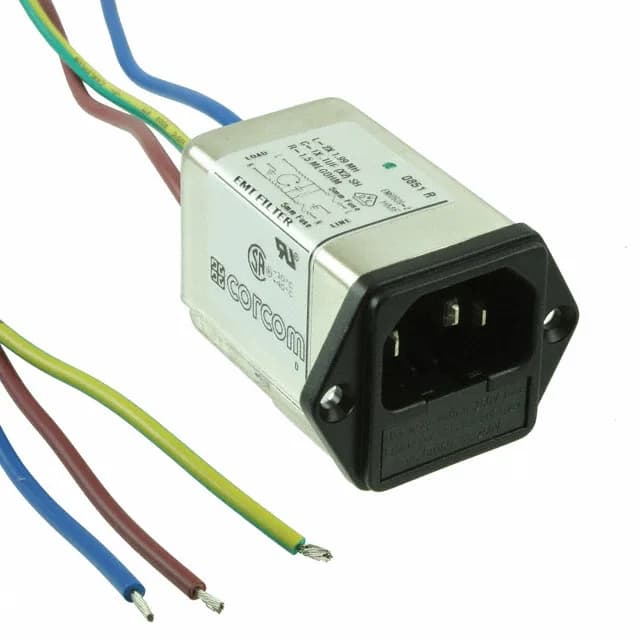

1-1609117-6 TE Corcom HG Power Entry Module, IEC C14, 1A

MPN1-1609117-6
Active

TE Connectivity Corcom Filters HG series power entry module, order code 1-1609117-6, IEC 320-C14 receptacle, 3 positions, 1 A filtered, 120/250 VAC, panel mount flange, wire leads termination.

$25.8800Ref. price · indicative, final on quote
TE Connectivity Corcom Filters 1-1609117-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesHG, Corcom
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1609117-6 specifications
ParameterValue
SeriesHG, Corcom
Filter typeFiltered (EMI, RFI) - Commercial
MountingPanel Mount, Flange
Connector typeIEC 320-C14
Voltage rating - appliance inlet120/250VAC
Current rating - filter1A
Current rating - appliance inlet1A
Panel cutoutRectangular - 31.50mm x 32.80mm
Approval agencyCSA, UL, VDE
PackageBulk
TerminationWire Leads
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerFuse Holder, Twin Fused
Positions3

Product details

Filtered IEC inlet with integrated fuse holder

The 1-1609117-6 is the 3-position filtered member of TE Connectivity Corcom Filters' HG series, accepting an IEC 320-C14 plug. Rated 1 A at 120/250 VAC, it integrates an EMI/RFI filter for commercial equipment and includes a twin-fused fuse holder (fuse not included).

Panel cutout and wiring

Mounts via a rectangular panel cutout 31.50 mm x 32.80 mm; termination is via wire leads, suiting installations where a separate power cord is wired directly to the module.

Frequently asked questions

What compliance documentation does TE Connectivity Corcom Filters provide for 1-1609117-6?

The 1-1609117-6 is ROHS3 compliant and carries approvals from CSA, UL, and VDE.
