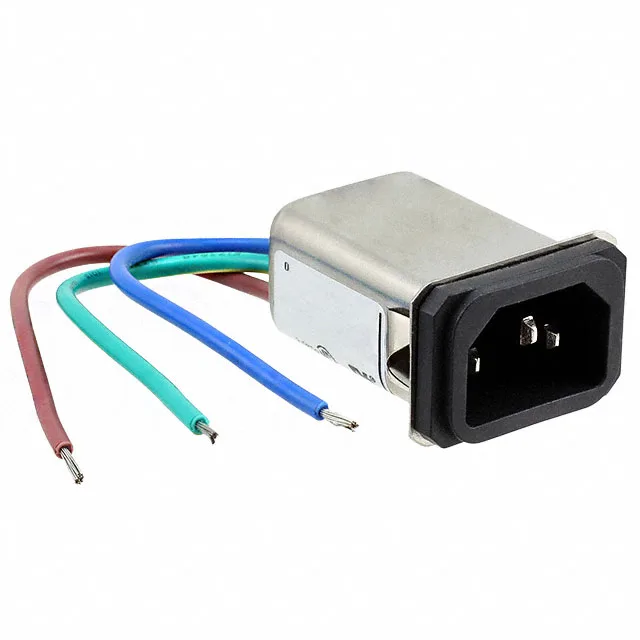

TE Connectivity Corcom Filters EJHS series power entry module, order code 2-6609008-4, IEC 320-C14 receptacle, 3 positions, 6 A filtered, 120/250 VAC, panel mount snap-in, wire leads, bulk.
| Parameter | Value |
|---|---|
| Series | EJHS, Corcom |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 120/250VAC |
| Current rating - filter | 6A |
| Current rating - appliance inlet | 6A |
| Panel cutout | Variable Size |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Features | Front or Rear Side Mount |
| Termination | Wire Leads |
| Panel thickness | 0.031\" ~ 0.068\" (0.79mm ~ 1.73mm) |
| Accomodates a fuse | No |
| Positions | 3 |
The 2-6609008-4 is the 3-position IEC 320-C14 member of TE Connectivity Corcom's EJHS series of filtered power entry modules. It carries a commercial-grade EMI/RFI filter rated 6 A at 120/250 VAC, mounts via snap-in panel retention, and terminates with wire leads for direct connection.
The 2-6609008-4 is ROHS3 compliant and carries approvals from CSA, UL, and VDE.
