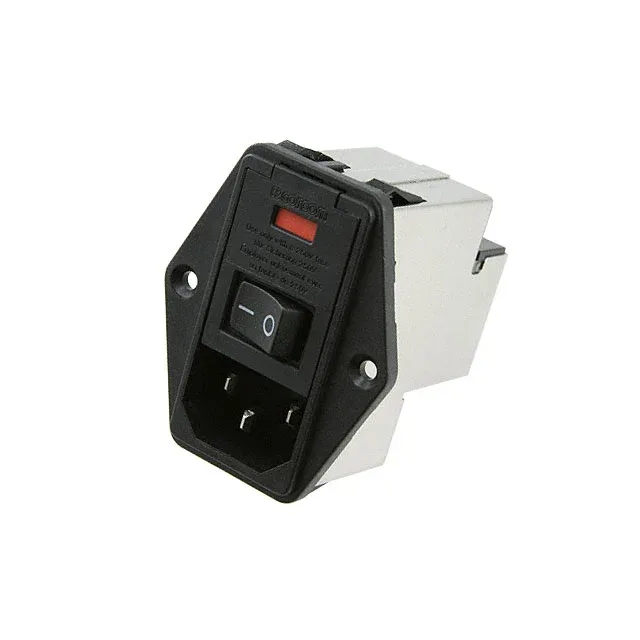

4-6609929-2 — TE Connectivity Corcom Filters product photo
TE Connectivity Corcom Filters

TE Corcom P 4-6609929-2 Power Entry Module, IEC C14, 10A

MPN4-6609929-2
Active

TE Connectivity Corcom Filters P series power entry module, order code 4-6609929-2, IEC 320-C14 receptacle, 3 positions, 10 A at 120 VAC, filtered (EMI/RFI), panel mount, flange, quick-connect 0.187" (4.7 mm) termination, shielded.

$36.9200Ref. price · indicative, final on quote
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-6609929-2 Technical Specifications
ParameterValue
SeriesP, Corcom
Filter typeFiltered (EMI, RFI) - Commercial, Medical
Mounting typePanel Mount, Flange
Connector typeIEC 320-C14
Voltage rating - appliance inlet120VAC
Current rating - filter10A
Current rating - appliance inlet10A
Panel cutoutVariable Size
Approval agencyCSA, UL, VDE
PackageBulk
FeaturesShielded
TerminationQuick Connect - 0.187\" (4.7mm)
Panel thickness0.031\" ~ 0.114\" (0.79mm ~ 2.90mm)
Switch featuresSwitch On-Off
Accomodates a fuseYes (Fuse Not Included)
Fuse holder, drawerFuse Holder, Twin Fused
Positions3

Product details

Panel-mount filtered inlet with switch and fuse holder

The 4-6609929-2 is a 3-position IEC 320-C14 receptacle from the TE Corcom P series, rated 10 A at 120 VAC with integrated EMI/RFI filtering for commercial and medical equipment. Termination is quick-connect 0.187" (4.7 mm) tabs; the module mounts to a panel via flange and accepts panel thickness from 0.031" to 0.114" (0.79 mm to 2.90 mm).

Integrated switch and twin fuse drawer

This module includes a built-in on-off switch and a twin-fused fuse holder (fuses not included) — the switch and fuse protection share the same housing, reducing panel cutout count. The shielded enclosure and filtered (EMI/RFI) design target conducted noise suppression in medical and commercial power-entry applications.

Frequently asked questions

What compliance documentation does TE provide for the 4-6609929-2?

The module is ROHS3 compliant and carries CSA, UL, and VDE approvals.

Does the 4-6609929-2 include a fuse?

The module accommodates a fuse (twin-fused holder) but the fuse is not included.
