TE Connectivity Corcom Filters C series power entry module, order code 6609113-9, IEC 320-C14, 3 positions, 6 A, 120/250 VAC, filtered, panel mount flange, quick connect 0.250" (6.3 mm) termination.
| Parameter | Value |
|---|---|
| Series | C, Corcom |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting type | Panel Mount, Flange |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 120/250VAC |
| Current rating - filter | 6A |
| Current rating - appliance inlet | 6A |
| Package | Bulk |
| Termination | Quick Connect - 0.250\" (6.3mm) |
| Switch features | Switch On-Off |
| Accomodates a fuse | No |
| Positions | 3 |

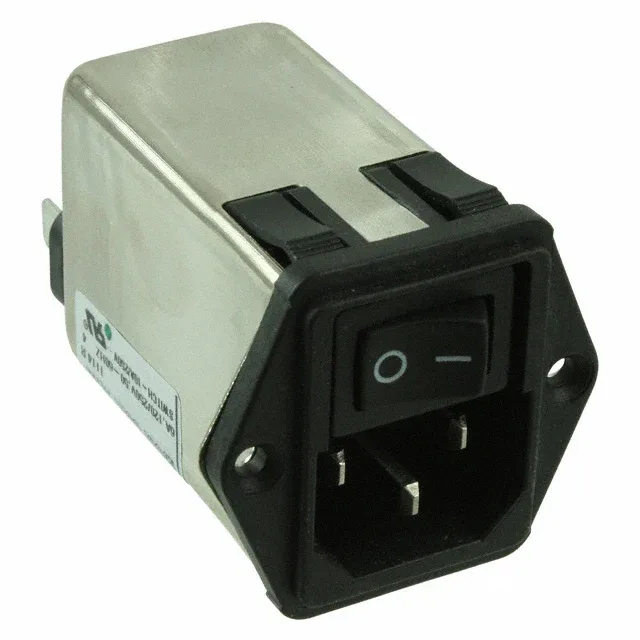

The 6609113-9 is a 3-position IEC 320-C14 power entry module in TE Connectivity Corcom Filters' C series, combining a filtered inlet with an on-off switch in a single panel-mount flange package. Rated 6 A at 120/250 VAC, the module integrates EMI/RFI filtering for commercial equipment and terminates via quick-connect 0.250" (6.3 mm) tabs.
The 6609113-9 is ROHS3 compliant.
