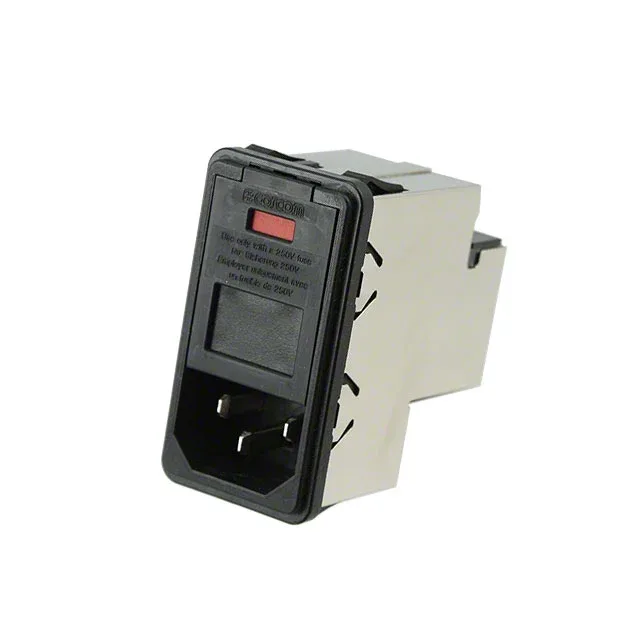

TE Connectivity Corcom Filters P series power entry module, order code 7-6609107-9, IEC 320-C14 receptacle, 3 positions, 10 A rated, 120 VAC, filtered (EMI/RFI), panel mount snap-in, quick connect 0.187" (4.7 mm) termination, shielded, bulk.
| Parameter | Value |
|---|---|
| Series | P, Corcom |
| Filter type | Filtered (EMI, RFI) - Commercial |
| Mounting type | Panel Mount, Snap-In |
| Connector type | IEC 320-C14 |
| Voltage rating - appliance inlet | 120VAC |
| Current rating - filter | 10A |
| Current rating - appliance inlet | 10A |
| Panel cutout | Variable Size |
| Approval agency | CSA, UL, VDE |
| Package | Bulk |
| Features | Shielded |
| Termination | Quick Connect - 0.187\" (4.7mm) |
| Panel thickness | 0.031\" ~ 0.114\" (0.79mm ~ 2.90mm) |
| Accomodates a fuse | Yes (Fuse Not Included) |
| Fuse holder, drawer | Fuse Holder, Twin Fused |
| Positions | 3 |
The 7-6609107-9 is a 3-position IEC 320-C14 power entry module from TE Connectivity Corcom Filters' P series, combining a shielded receptacle with a commercial EMI/RFI filter stage. Rated 10 A at 120 VAC, it mounts via panel snap-in and terminates with quick-connect tabs sized 0.187" (4.7 mm).
The module is ROHS3 compliant and carries CSA, UL, and VDE approvals.
