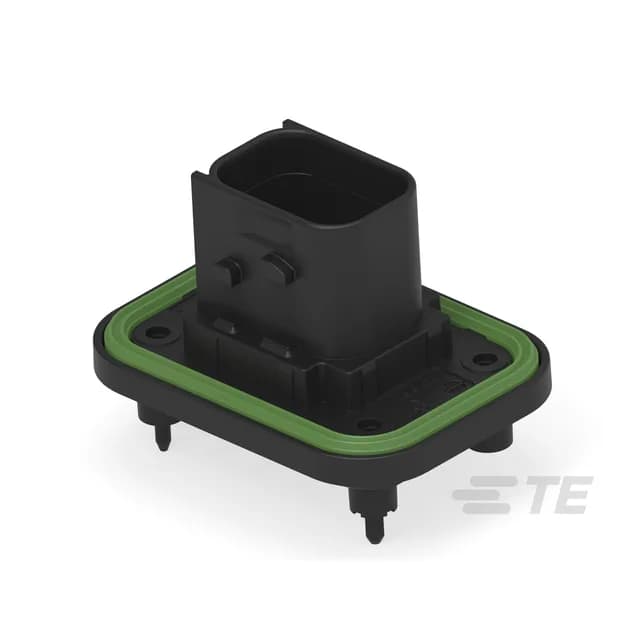

TE Connectivity Deutsch Connectors 1-2378182-1
MPN1-2378182-1
Active
$14.1600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Heavy Duty Sealed Connector Series, MCP |
| Type | Tab |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 10A |
| Operating temperature | -40°C ~ 140°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.236\" (6.00mm) |
| Positions | 6 |
| Contact finish - mating | Silver |
