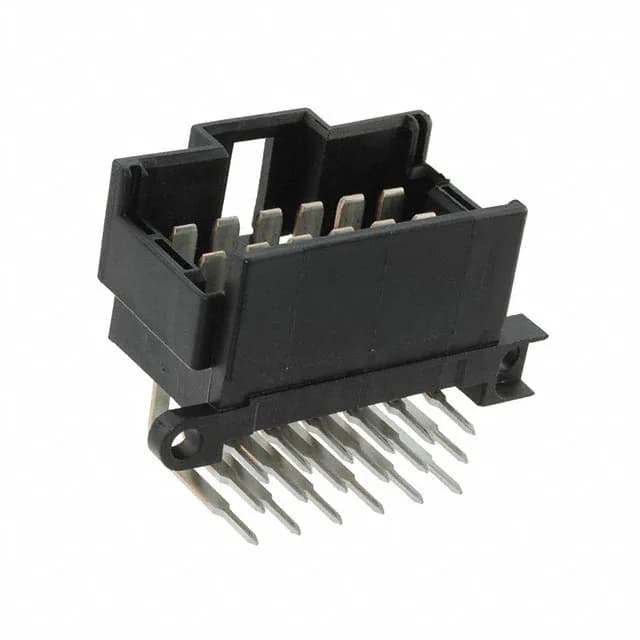

TE Connectivity Deutsch Connectors 9-966140-1
MPN9-966140-1
Active
$6.2100Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MCP |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 100°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.012\" (25.70mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Style | Board to Board or Cable |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.217\" (5.51mm) |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
