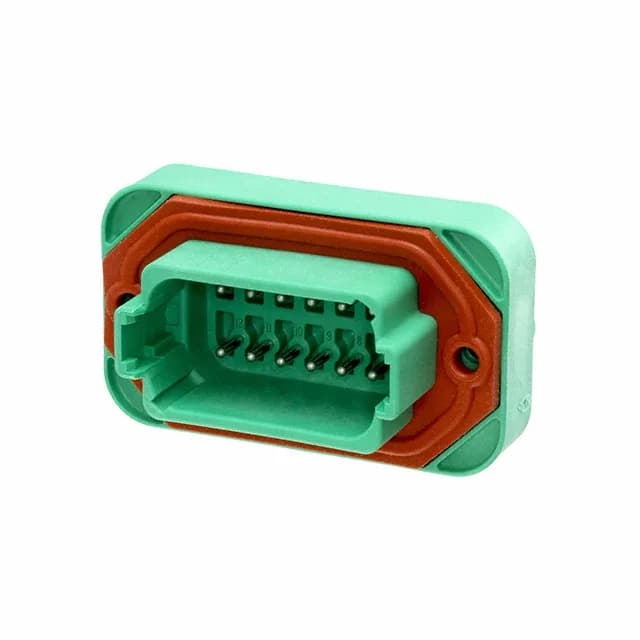

TE Connectivity Deutsch Connectors DT15-12PC-B016
MPNDT15-12PC-B016
Active
$11.7200Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DT |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VDC |
| IP rating | IP68/IP6K9K |
| Operating temperature | -55°C ~ 125°C |
| Insulation color | Green |
| Insulation height | 1.371\" (34.82mm) |
| Insulation material | Plastic |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.175\" (4.44mm) |
| Positions | 12 |
| Row spacing - mating | 0.360\" (9.14mm) |
| Contact length - post | 0.122\" (3.10mm) |
