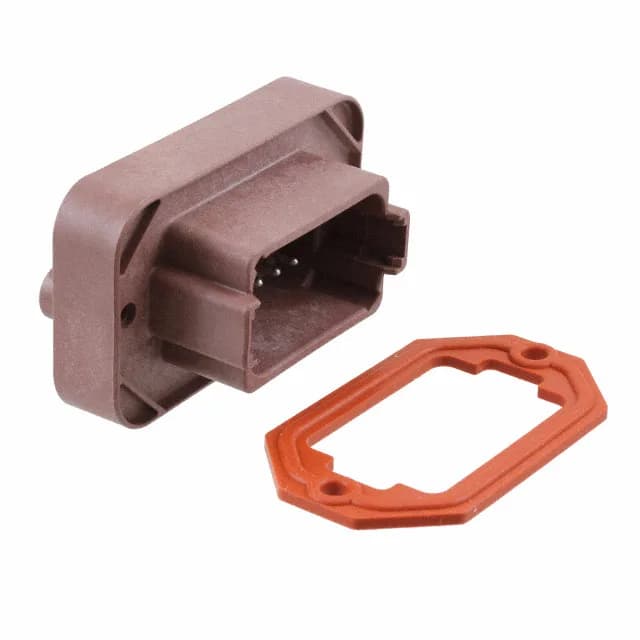

TE Connectivity Deutsch Connectors DT15-12PD
MPNDT15-12PD
Active
$11.7200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DT |
| Type | Male Pin |
| Mounting | Panel Mount, Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VDC |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Brown |
| Insulation height | 1.185\" (30.10mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.175\" (4.44mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Nickel |
