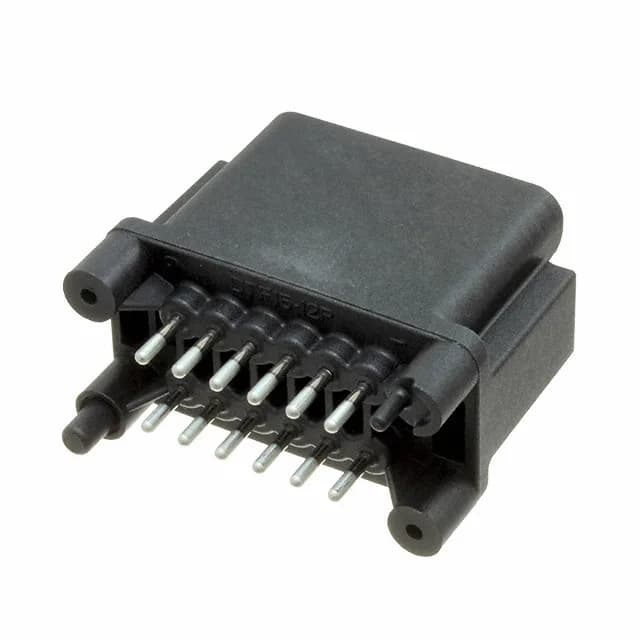

TE Connectivity Deutsch Connectors DTF15-12PB
MPNDTF15-12PB
Active
$11.4200Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DTF |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.377\" (34.98mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.175\" (4.44mm) |
| Positions | 12 |
| Row spacing - mating | 0.359\" (9.12mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Nickel |
