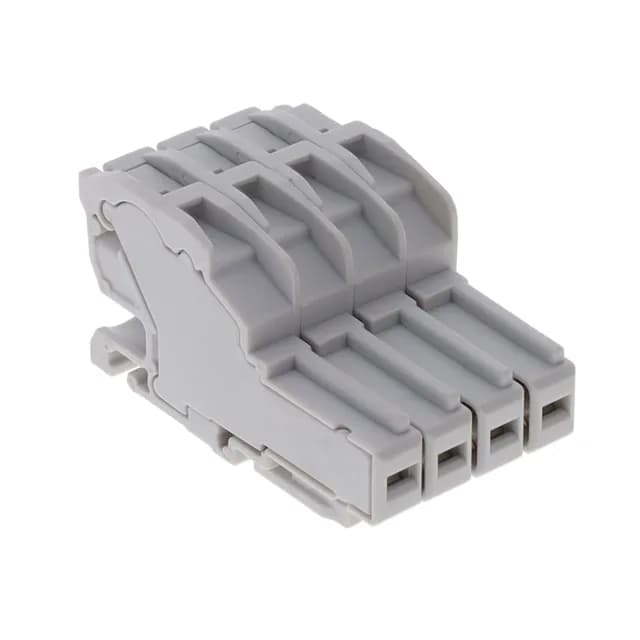

TE Connectivity ENTRELEC 1SNK805718R0000
MPN1SNK805718R0000
Active
$7.8500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | SNK, CDK |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 22 A |
| Current - IEC | 24A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire strip length | 11mm |
| Wire gauge or range - AWG | 12-26 AWG |
| Wire gauge or range - mm2 | 0.2-4mm² |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature | -55°C ~ 110°C |
| Color | Gray |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 1.430\" (36.32mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 4 |
| Positions per level | 4 |
