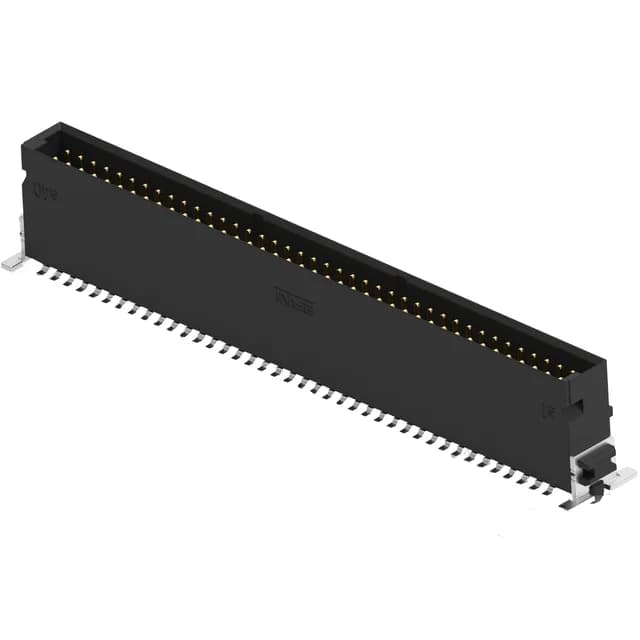

TE Connectivity Erni 234210-E
MPN234210-E
Active
80-PIN, VERTICAL, SMT
$10.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SMC |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 1.7A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.388\" (9.86mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 80 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
