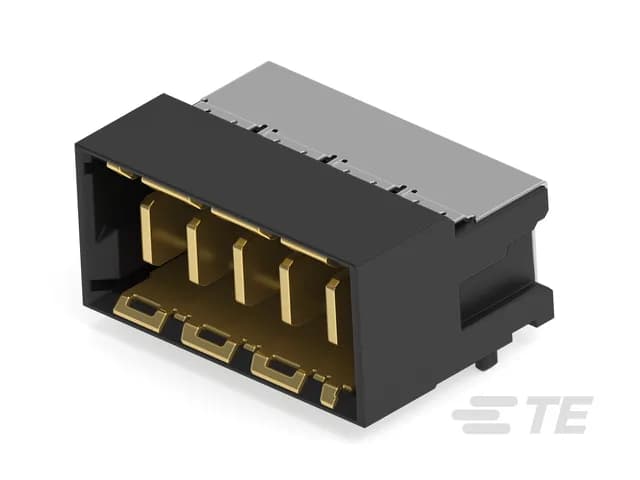

TE Connectivity Erni 364705-E
MPN364705-E
Active
5-PIN, RIGHT ANGLE, SMT
$10.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMICROSPEED
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MICROSPEED |
| Type | Male Blade |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 18A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.230\" (5.85mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.108\" (2.75mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
