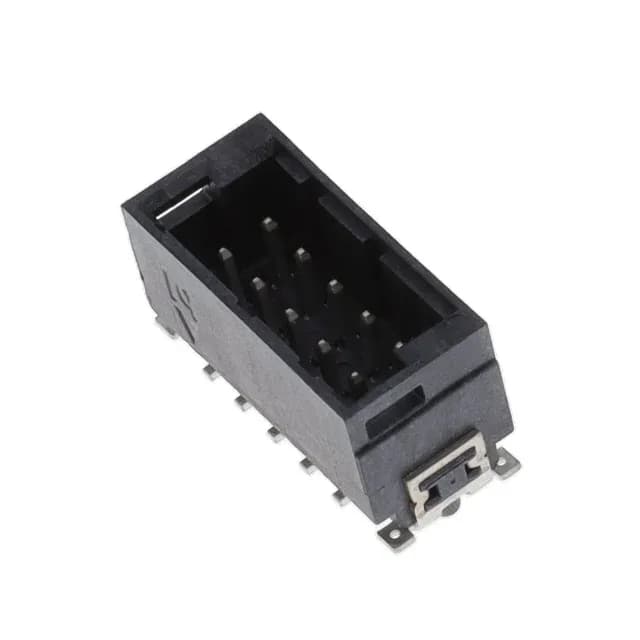

TE Connectivity Erni 524639-E
MPN524639-E
Active
MAXIBR_QT M 2X5P ST SMT TIN BK
$6.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMAXIBRIDGE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MAXIBRIDGE |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 12A per Contact |
| Operating temperature | -55°C ~ 150°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.370\" (9.40mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Pick and Place, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.161\" (4.09mm) |
| Contact finish thickness - post | 157.5µin (4.00µm) |
