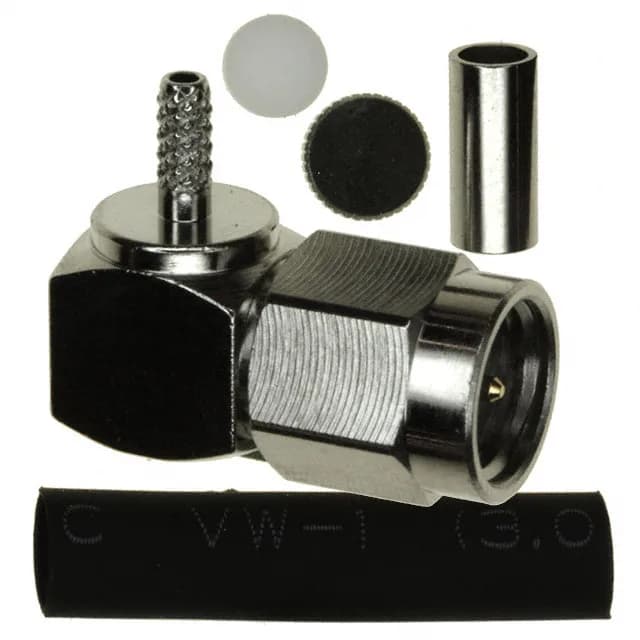

TE Connectivity Linx CONSMA012-R178
MPNCONSMA012-R178
Active
$4.0300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 250 V |
| Frequency - max | 12.4 GHz |
| Cable group | RG-178 |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Includes | 5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink, 1 Insulator |
All specifications
| Parameter | Value |
|---|---|
| Impedance | 50 Ohms |
| Package | Bag |
| Body finish | Nickel |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Solder |
| Center contact plating | Gold |
