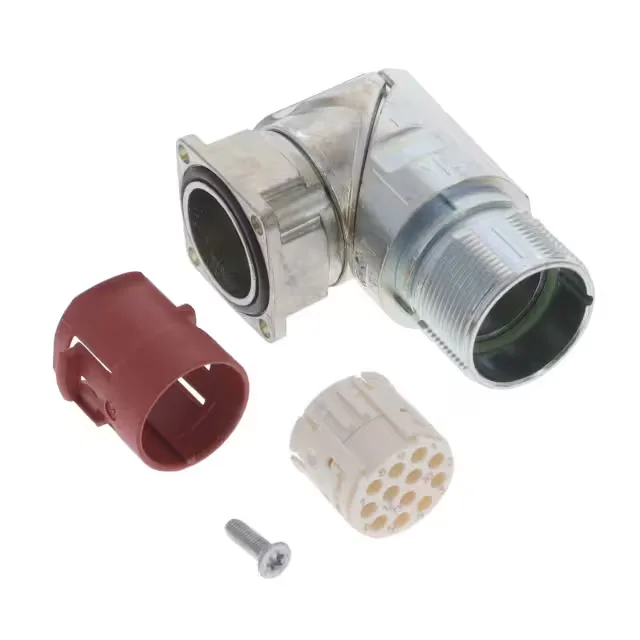

TE Intercontec AGC110N00001215000
MPNAGC110N00001215000
Active
CONN RCPT HSG MALE 12P PNL MT RA
$18.54Ref. price · indicative, final on quote
Series623
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | 623 |
| Mounting | Panel Mount, Right Angle |
| Connector type | Receptacle Housing |
| Fastening type | Push-Twist |
| IP rating | IP66/IP67 - Dust Tight, Water Resistant, Waterproof |
| Mounting feature | Flange |
| Operating temperature | -20°C ~ 130°C |
| Housing color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Note | Contacts Not Included |
| Package | Box |
| Features | Backshell, Rotatable |
| Includes | 3 pcs - 1 Connector, 1 Backshell, 1 O-Ring |
| Shielding | Unshielded |
| Orientation | Keyed |
| Shell finish | Chromate |
| Contact shape | Circular |
| Positions | 12 |
| Shell size - insert | M23-12 |
