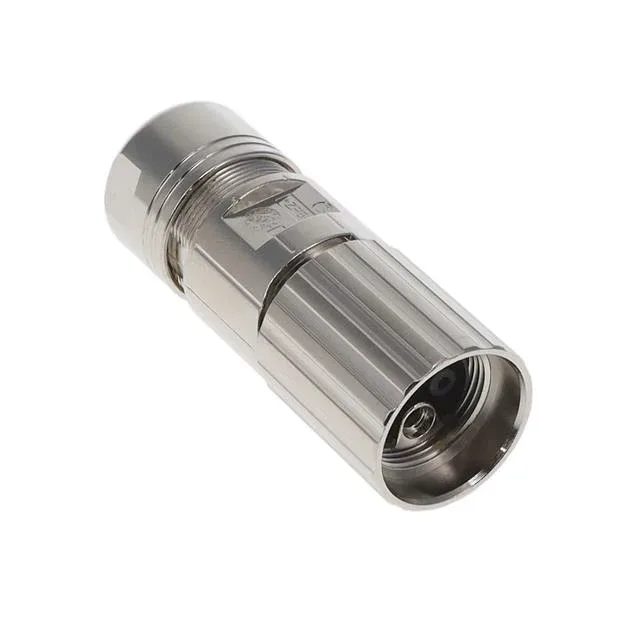

TE Intercontec BSTA896NN0086202A000
MPNBSTA896NN0086202A000
Active
917 PLUG
$25.41Ref. price · indicative, final on quote
Seriesspeedtec
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Female Sockets |
| Series | speedtec |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug Housing |
| Fastening type | Push-Twist |
| IP rating | IP66/IP67 - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -20°C ~ 130°C |
| Housing color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Backshell, Cable Clamp, Coupling Nut |
| Includes | 4 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 O-Ring |
| Shielding | Shielded |
| Orientation | Keyed |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 4 (3 Power + PE) |
| Shell size - insert | M17-4 |
