TE Intercontec CKA267N00450051000
MPNCKA267N00450051000
Active

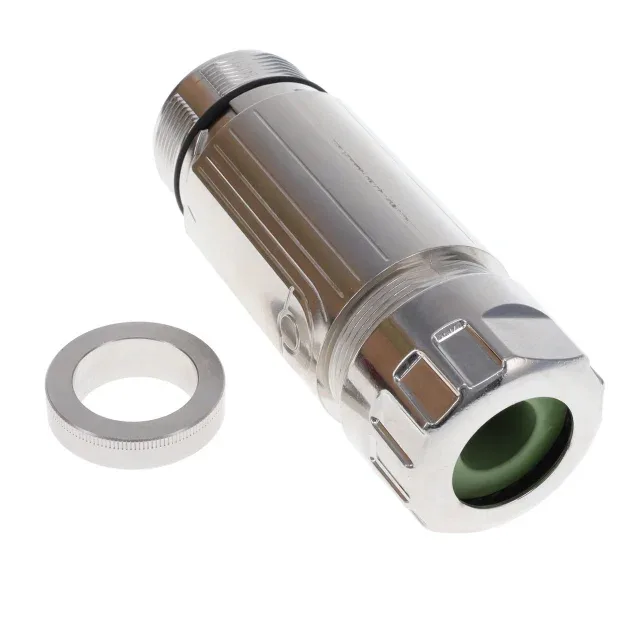

CONN RCPT HSG MALE 6POS INLINE
$62.69Ref. price · indicative, final on quote
Series940
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | For Male Pins |
| Series | 940 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle Housing |
| Fastening type | Push-Twist |
| IP rating | IP66/IP67 - Dust Tight, Water Resistant, Waterproof |
| Operating temperature | -20°C ~ 130°C |
| Housing color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
All specifications
| Parameter | Value |
|---|---|
| Package | Box |
| Features | Backshell, Cable Clamp |
| Includes | 3 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp |
| Shielding | Shielded |
| Orientation | Keyed |
| Shell finish | Nickel |
| Contact shape | Circular |
| Positions | 6 (2 + 3 Power + PE) |
| Shell size - insert | M40-6 |
