Tensility International Corp 50-00011
MPN50-00011
Active

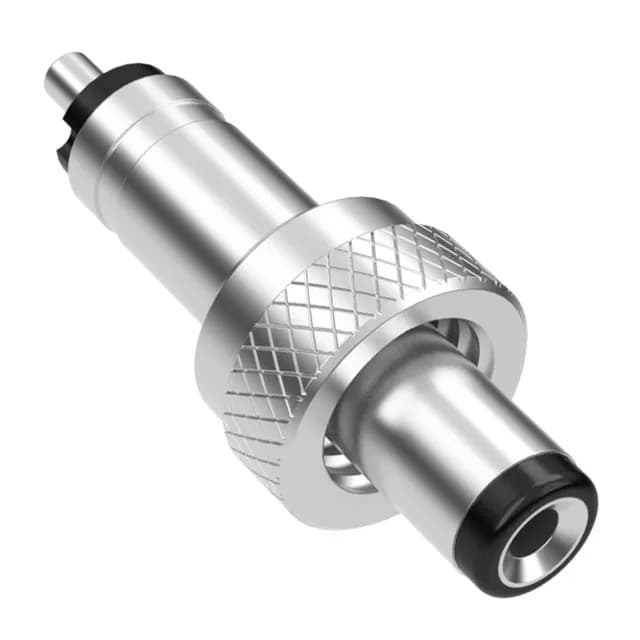

CONN PLUG 5.5X2.5MM LOCK STYLE
$2.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 24VDC |
| Current rating | 8 A |
| Operating temperature | -25°C ~ 70°C |
| Body color | Silver |
| Body material | Brass |
| Contact material | Brass |
| Mating length (Depth) | 0.295\" (7.50mm) |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Thread Lock |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Connector size | 5/16\"-32 |
| Actual diameter | 0.098\" (2.50mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
