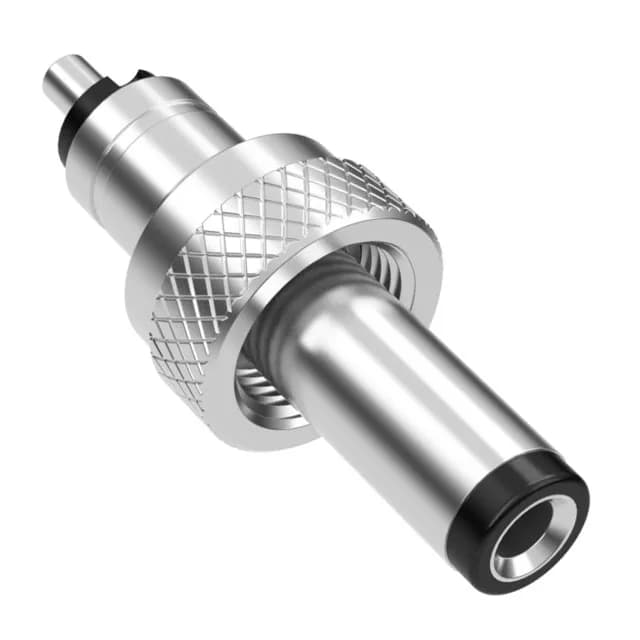

Tensility International Corp 50-00104
MPN50-00104
Active
CONN PLUG 5.5X2.5MM LOCK STYLE
$2.5600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Voltage - rated | 24VDC |
| Current rating | 8 A |
| Operating temperature | -25°C ~ 70°C |
| Mating length (Depth) | 0.472\" (12.00mm) |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
| Features | Thread Lock |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Actual diameter | 0.098\" (2.50mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
