Tensility International Corp 51-00022.52
MPN51-00022.52
Active

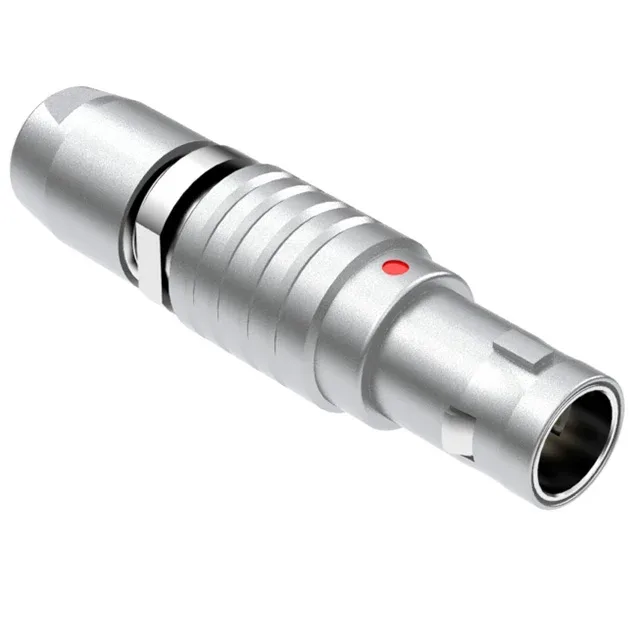

CONN PLUG MALE 6POS SOLDER CUP
$27.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPPL7
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PPL7 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 300V |
| Current rating | 2.5A |
| IP rating | IP50 - Dust Protected |
| Cable opening | 0.205\" (5.20mm) |
| Operating temperature | -55°C ~ 220°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Metal |
| Backshell material, plating | Brass, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Shielding | Shielded |
| Orientation | 0 |
| Termination | Solder Cup |
| Shell finish | Nickel |
| Positions | 6 |
| Shell size - insert | 0 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
