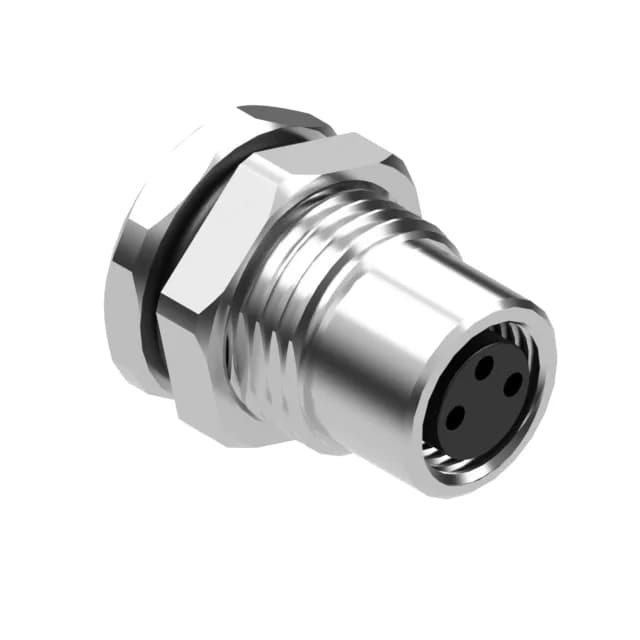

Tensility International Corp 54-00292
MPN54-00292
Active
M8 A-CODE 3POS RCPT PANEL MOUNT
$5.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M8 |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 60V |
| Current rating | 3A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 105°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Metal |
| Material flammability rating | UL94 HB |
| Package | Tray |
| Shielding | Shielded |
| Orientation | A |
| Termination | Solder Cup |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M8-3 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
